How to put spark plug wires together: a practical guide

When you own a modern engine, the way you connect spark plug wires affects starting, idle quality, and overall engine performance. According to MultiPlugging, how to put spark plug wires together correctly matters more than most DIY tweaks. Misrouted, loose, or cracked boots can cause misfires, reduced fuel economy, and heat-related damage. This guide helps you identify the correct firing order, verify boot integrity, and route wires to minimize interference.

First, confirm the firing order for your engine using the owner’s manual or a trusted online service. Then, lay out the wiring harness so you can map each wire to its corresponding cylinder. Inspect each boot for cracks, corrosion, and wear; replace any damaged components before you begin. Dielectric grease on the inside of each boot improves a watertight seal and makes removal easier later.

Next, pair each wire with its spark plug using the correct orientation. Be mindful of coil packs and distributor caps that influence routing in older engines. A tidy layout reduces crossfire and heat exposure, helping preserve ignition strength across the full temperature range.

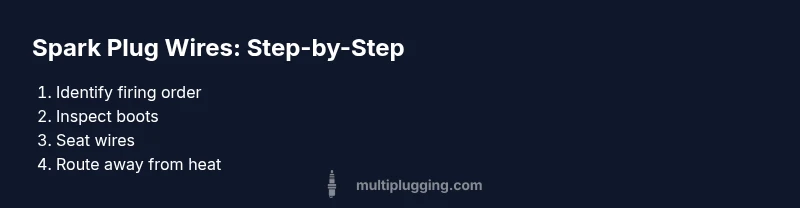

The steps below build on this foundation and emphasize safety, accuracy, and repeatable results. The MultiPlugging team found that careful preparation yields the best long-term performance and serves as a reliable reference for DIYers.

Safety and preparation

Safety is the foundation of any spark plug wire work. Begin with the engine off and the key out, and disconnect the negative battery cable to prevent accidental electrical shock or short circuits. Wear gloves to protect your hands from sharp edges, and keep hair and clothing away from moving components. Work in a well-ventilated area and set a clear workspace. Gather the tools and materials before you start to minimize trips to the toolbox.

Before touching any wires, take a moment to study the firing order diagram for your specific engine. Label each wire on its boot or connector so you can reattach them in the correct position. If you’re working in a tight engine bay, consider raising the hood or using a magnetized pick-up tool to handle small components without dropping them. Finally, verify that you are using the correct wire set for your engine's make and model. Following these precautions reduces the risk of damage and ensures you’ll complete the job safely and efficiently.

Identify firing order and wire lengths

The firing order tells you which cylinder fires first and in what sequence the rest follow. Consult your service manual or a manufacturer diagram to obtain the exact order for your engine. Once you have the order, lay out the wires in that sequence on a clean surface, and inspect each wire length to estimate routing. If your vehicle has a distributor, note how the rotor orientation affects which wire goes to which cylinder. Avoid twisting wires tightly, as this can damage conductive cores and degrade performance. Keep in mind that aftermarket sets vary slightly in length; select a set designed for your engine to minimize tension on boots and connectors. For engines with coil-on-plug systems, the order is still important but the boots may be shorter, and routing is often more compact. Finally, compare worn boots to new ones and plan to replace any that show damage to maintain consistent spark delivery across all cylinders.

Wire prep, seating, and sealing

Now you’re ready to begin the physical connection. Start by removing one boot at a time, keeping other wires undisturbed to maintain the original order. Use a clean cloth to wipe the metal contact and the inside of the boot. Inspect the metal terminals for corrosion or bending, and replace any damaged ones. Apply a small amount of dielectric grease to the inside of each boot to improve seal and facilitate future removal. Do not apply grease to the contact surface itself, only to the inside of the boot. Reinsert the spark plug wire onto the spark plug with a firm, straight push until you hear a click, then gently tug to confirm seating. For coil packs or distributor towers, ensure the boot fully engages with a crisp snap. Finally, check that each wire runs through a safe channel away from sharp edges, moving parts, and exhaust components.

Common mistakes and troubleshooting

Common mistakes include mixing up the firing order, forcing boots onto the wrong cylinders, and leaving boots partially disconnected. Such errors cause misfires, rough idle, and reduced fuel efficiency. If you notice a rough idle after wiring, disconnect the battery again, recheck the order against the diagram, and reseat each boot firmly. Inspect for damaged wire insulation or cracked boots, and replace as needed. If a misfire persists after replacement, check ignition coils, spark plugs, and connectors for corrosion or damage. Finally, ensure you didn’t route wires across hot surfaces or into the exhaust manifold where heat can degrade insulation.

Maintenance tips and long-term care

Regular inspection is essential for continued performance. After several thousand miles or a year of use, inspect all wires for cracking, stiffness, or coating wear and replace as necessary. Use dielectric grease at each boot junction during reinstallation to protect against moisture and corrosion. When you replace wires, consider replacing them as a matched set to preserve uniform resistance and timing. Store spare wires properly in a dry, cool place and avoid bending them sharply. A clean, organized engine bay makes it easier to spot wear before it leads to failure.
