How to Put Spark Plug Wire Ends On: DIY Guide

Why proper spark plug wire ends matter

When learning how to put spark plug wire ends on, the first thing to understand is that the connection quality matters more than most DIY details. The spark plug wire end, or terminal, is the interface between the ignition system and the spark plug. A poor connection can cause misfires, reduced idle stability, and inefficient fuel burn. In hot or cold weather, arcing or corrosion at the end can degrade voltage transfer, leading to weak sparks and engine hesitation. The goal is a secure, low-resistance path that remains intact through vibration, heat cycles, and humidity.

Different engines use different terminal styles and wire diameters, so selecting the right end is not a one-size-fits-all task. If you’re confronted with a misfire after replacing plugs, the most common culprit is a loosened or ill-fitting wire end. A correct terminal also resists moisture ingress and keeps the conductor shield intact. As you work through this guide, you’ll learn how to evaluate compatibility, prepare the wire, and complete a reliable crimp that won’t loosen over time. By focusing on clean connections, you’ll maximize spark energy delivery and reduce downtime on the driveway or in the garage.

Wire end types and compatibility

Wire ends come in several styles, and choosing the right one depends on the wire diameter, the type of ignition coil, and the design of the spark plug boot. Common categories include crimp-on barrel terminals, blade-style contact ends, and the newer precision-fit connectors used with coil-on-plug systems. Some ends are insulated to match the wire’s insulation color, while others rely on bare metal contact with a little sealing compound. Before you buy, verify the wire size and the mating terminal from the factory manual or parts diagram. If you mismatch, you risk a loose fit, poor contact, or insulation damage that can cause short circuits. In many cars, the same wire might connect to multiple cylinders, but the terminals may differ by cylinder or wire length, so it’s essential to confirm each end’s compatibility. When in doubt, use a terminal kit that includes several sizes and the appropriate crimp dies. The goal is a snug, vibration-resistant connection that remains sealed against moisture.

Safety and prep steps

Safety should drive every hands-on automotive task. Start by turning off the engine, removing the key, and disconnecting the negative battery terminal to minimize the risk of shock or accidental sparks. Wear safety glasses and work in a well-lit area with a clean surface. Prepare your workspace by laying out a spare rag, a small tray for fasteners, and a labeling system so you don’t mix up wires. If your vehicle uses coil-on-plug ignition, some service manuals recommend disconnecting the coil connectors in addition to the battery. Follow the procedure in your owner’s manual to prevent damage to sensitive ignition electronics. Keep a fire extinguisher nearby as a precaution, and never work near hot exhaust components. Finally, inspect the wire for any signs of heat damage, loosening of insulation, or cracking at the boot; replacing damaged wires is often safer than attempting a repair.

What you’ll need: tools and materials

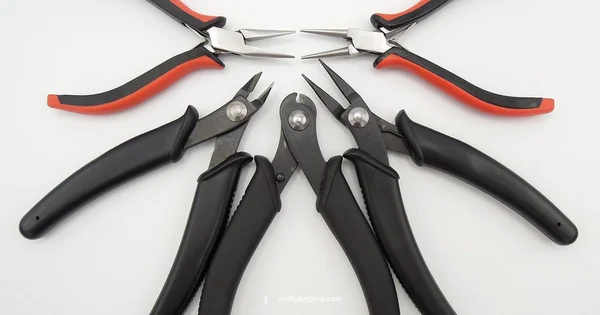

Before you start, confirm you have the right tools and parts. A correctly sized terminal end for your wire is essential, and you’ll need a crimping tool that matches the terminal type. A sharp wire stripper, needle-nose pliers, and scissors or side cutters help with insulation removal and wire management. Isopropyl alcohol or contact cleaner keeps surfaces clean, and dielectric grease can prevent moisture intrusion at the terminal barrel if you plan to reuse it. A bright flashlight and a work mat reduce the chance of losing tiny components. If you’re uncertain about the fit, a small digital caliper can help you compare diameters and barrel sizes. Having spare terminals and a spare length of wire is wise in case you need to redo a connection, especially on older engines where tolerances vary.

Step-by-step overview of the process (high level)

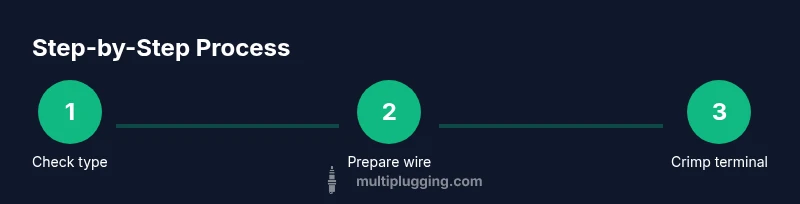

Putting it all together follows a logical sequence: first, verify you have the correct terminal type for your wire and engine; next, disconnect power sources and locate the wire that leads to the spark plug; then, carefully remove any old terminal and inspect the conductor; afterward, prepare the wire by stripping an appropriate length of insulation; then, attach the new terminal using a crimp tool, ensuring the crimp captures both the conductor and the insulation as designed; finally, apply a small amount of dielectric grease, reseat the terminal into the boot, and reconnect any battery or ignition connections. This overview prepares you for the detailed, step-by-step instructions that follow.

Crimping and securing the wire end

Crimping is where many amateurs get into trouble. A proper crimp forms a solid mechanical and electrical connection that won’t loosen through engine vibration. Start by aligning the terminal with the conductor; ensure the barrel fully encloses the wire without crushing the insulation. Use a crimping tool matched to the terminal you selected; apply steady, even pressure until you hear or feel a distinct click indicating a full engagement. Avoid over-crimping, which can crush the copper or deform the terminal; under-crimping leads to a loose fit. After crimping, gently tug the wire near the terminal to test the grip. If it moves, redo with the correct tool and dies. It is also wise to inspect the conductor for any stray strands that could cause a short. If you’re using a re-sealable boot, slide it back to observe how the terminal sits inside. The goal is a clean, sound grip that won’t loosen when the engine shakes at high RPM.

Dielectric grease and sealing the terminal

Dielectric grease has two main roles: it reduces corrosion at metal-to-metal contact and helps seal the terminal against moisture and dirt. A small dab along the inside of the terminal barrel or on the exposed conductor end can improve long-term reliability. Apply grease sparingly; too much can attract dust or interfere with the crimp. Some technicians prefer to grease the terminal contact on the wire side only, while others grease inside the boot just before seating. Always check manufacturer guidance for your terminal type. After applying grease, rotate or twist the terminal gently to ensure it’s seated properly inside the boot and aligned with the spark plug connector. Wipe away any excess grease with a clean cloth. If you notice any roughness or stiffness when inserting the terminal into the boot, back up and recheck the terminal orientation. A well-greased, clean connection reduces resistance and helps prevent future misfires.

Reassembly and initial testing

With the terminal secured, begin reassembly by routing the wire back toward the spark plug boot, avoiding sharp edges, hot surfaces, and moving parts. Make sure the boot seats fully on the spark plug nipple and there is no gap between the boot and the metal contact. Reconnect the ignition channel or coil connector if you disconnected it, but never force a connection if it doesn’t fit. Reconnect the battery negative terminal, and perform a cautious start-up check. Listen for any misfires or rough running; a healthy ignition path should deliver a smooth idle and steady throttle response. If you hear pinging, missing, or backfiring, stop the engine and re-check the terminal: confirm the correct terminal size, verify the crimp, and make sure the wire isn’t damaged along its length. Also, recheck the wiring order if you replaced multiple ends on the same bank. A careful reassembly reduces the likelihood of post-repair problems.

Troubleshooting common mistakes

Even experienced DIYers can stumble on this job. Common mistakes include using the wrong terminal type for the wire, which leads to a loose fit or poor conductivity; under- or over-crimping, which can crack the barrel or damage the conductor; neglecting to clean the conductor before attachment, causing corrosion; failing to route the wires away from heat and exhaust, resulting in insulation damage; and not applying dielectric grease when moisture exposure is likely. Another frequent issue is reusing old wire ends that have stretched or fatigued with age, which can produce intermittent misfires. If you encounter persistent misfires after replacing ends, inspect for cracks in the insulation, verify the end-to-wire orientation, and confirm that the boot seats properly on the spark plug. When in doubt, replace the entire wire kit with new ends that match your engine’s requirements.

Maintenance tips for long-term reliability

After you finish the install, adopt a simple maintenance routine to keep the system reliable. Periodically inspect wire ends for signs of wear, cracking, or corrosion and replace as needed. Keep boots clean and dry, and ensure wires are routed away from heat sources and moving parts. Use dielectric grease as a preventive measure in damp environments, and store spare terminals in a labeled container. If you perform regular tune-ups, incorporate a quick test: inspect the resistance and continuity of the wire path with a multimeter when you replace plugs. This helps you catch developing problems before they affect performance. Finally, refer to your vehicle service manual for any model-specific requirements, such as torque specs for spark plug boots or recommended replacement intervals for coil packs. A proactive approach reduces the risk of ignition failure and keeps engines running smoothly.
