How to Use a Spark Plug Gap Gauge: A DIY Guide
Learn how to use a spark plug gap gauge to measure and adjust gaps accurately. This comprehensive guide covers gauge types, engine specs, safe techniques, and troubleshooting for reliable ignition and optimal performance.
Using a spark plug gap gauge lets you measure and adjust the gap precisely, ensuring reliable starts and smooth running. You’ll verify the gap against the engine spec, then set it by careful bending or replacement. This quick check can prevent misfires and improve efficiency. Keep safety in mind and work in a well-lit area.
Why gauge accuracy matters in ignition systems
A precise spark plug gap is essential for proper ignition timing, stable idle, and efficient fuel combustion. Even small deviations can cause misfires, reduced power, or rough running. According to MultiPlugging, precision in spark plug gaps can influence ignition efficiency, especially in modern engines with tight tolerances. This section explains the rationale behind using a gauge and what you gain by making a deliberate, measured adjustment rather than guessing. You will learn how a correct gap supports consistent flame kernel development, reduces unburned fuel, and helps your engine start cleanly across temperature ranges.
Gauge types: feeler, blade, and digital gauges
Gap gauges come in several forms, each with strengths. Feeler gauges use thin metal blades of fixed thickness to check the space between the electrode and the ground electrode. Blade gauges provide a quick feel for common gap sizes and are useful for quick checks. Digital gap gauges, including color-coded or dial readouts, deliver numeric values with minimal guesswork. For DIY work, a combination kit (feeler blades plus a digital reader) often offers the best balance of accuracy and convenience. Regardless of type, ensure the unit is calibrated and read in the same unit system as your engine spec (imperial or metric).
Finding the correct gap specification for your engine
Engine manufacturers publish gap specifications in owners manuals or service sheets. Always cross-check the exact plug model, engine type, and operating conditions. Do not rely on memory or generic ranges; wrong gaps can lead to hard starts or misfires. If you’re unsure, refer to the official spec in your manual or trusted guides. As part of the process, collect the plug part number, vehicle year, and engine code so you can verify the precise gap required by your setup.
Workspace setup and safety basics for gap checking
Set up a clean, well-lit workspace with a stable surface. Use protective eyewear and keep tools organized to avoid dropping a plug into the engine bay. Disconnect the battery if you’re near electrical components or performing more invasive work. Lay out a small tray for removed plugs to prevent loss of hardware. Cleaning the plug and seat area before measurement reduces the chance of dirt skewing the reading.
Reading the gap: what the gauge tells you and how to interpret it
When you insert a gauge, you should feel a light, consistent resistance without forcing blades. If a digital gauge is used, take the reading only after the device stabilizes. Compare the measured gap to the engine spec; if it’s within tolerance, you’re good to go. If not, you’ll decide whether to adjust the gap, replace the plug, or consider checking adjacent plugs for uniformity. A careful, calm reading yields the most reliable results over time.
Safe adjustment vs. replacement: how to decide what to do
If the gap is slightly out of spec, small adjustments to the ground electrode can bring it into tolerance. Use small, controlled movements and re-check frequently to avoid over-bending. When the gap is far from spec or the electrode is damaged, replacement is the safer option. Replacing plugs ensures a uniform gap across all cylinders, which supports consistent ignition and performance.
Rechecking, reinstalling, and testing the engine
After any adjustment or plug replacement, re-measure the gap to confirm accuracy. Carefully reinstall the plug, tightening to the manufacturer’s torque specification if you have a torque wrench. Reconnect any leads and run a short engine test to verify smooth operation and absence of misfires. Document the process for future maintenance so you can compare readings over time.
Common mistakes and how to avoid them
Never force a gauge into a gap; if it does not fit, check your plug type or stack size. Avoid bending too aggressively; even small over-bends can alter the electrode geometry. Do not ignore debris on the threads or seat that can mask the true gap reading. Finally, rely on the correct specification rather than a guess; precise measurements depend on clean tools and careful technique.
Tools & Materials
- Spark plug gap gauge (feeler gauge or digital gauge)(Choose imperial and metric ranges; ensure calibration and familiarity with your gauge type)
- Spark plug socket wrench and ratchet(For safely removing and reinstalling plugs)
- Torque wrench(Use when you need to torque plug to specification)
- Owner’s manual or engine spec sheet(Refer to the exact gap spec for your engine and plug model)
- Safety glasses(Eye protection during handling and cleaning)
- Cleaning cloth or lint-free wipe(Clean seating area and plug threads before measurement)
- Anti-seize lubricant (optional)(Apply sparingly to threads if your manufacturer recommends it)
- Magnetized pickup tool (optional)(Helpful for recoveries in shallow bays)

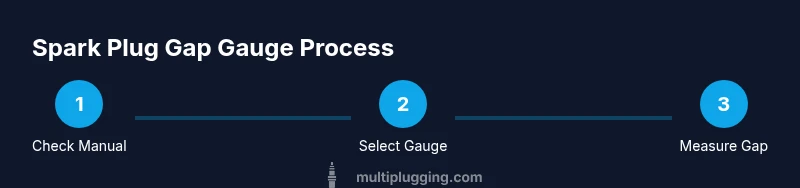

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety gear
Clear the area, gather tools, and wear eye protection. Ensure the vehicle is off and cool before handling plugs. This reduces the risk of burns and slips while you work.
Tip: Keep a dedicated tray for removed plugs to avoid loss. - 2
Identify the correct gap spec for your engine
Consult the owner's manual or service sheet to locate the precise gap required for your spark plug model. Use the same units (imperial or metric) throughout the process to avoid misreading.
Tip: Double-check part numbers and engine code to ensure accuracy. - 3
Remove the spark plug safely
Use a spark plug socket and ratchet to carefully loosen and lift the plug from its well. Avoid sudden twists that could damage threads or the ceramic insulator.
Tip: Lightly spray with a cleaner if there’s carbon buildup before removal. - 4
Clean the plug seat and threads
Wipe the seat area and threads with a lint-free cloth. Debris can trap or skew measurements, so ensure the surface is clean before measurement.
Tip: Inspect threads for damage; if damaged, do not reuse. - 5
Select and prepare the appropriate gauge
Choose the gauge size that matches the engine spec. If using a feeler gauge, calibrate blades and stack up to cover the expected tolerance. For digital gauges, ensure the device is zeroed before measuring.
Tip: Have both imperial and metric blades ready for cross-checking. - 6
Measure the gap and read the result
Insert the gauge blade or use the digital readout to determine the gap. Confirm the reading is stable and free of wobble before comparing to spec.
Tip: Take multiple readings in quick succession to verify consistency. - 7
Adjust if outside spec or replace if necessary
If out of spec, perform a slight bend on the ground electrode to adjust. If the gap remains outside tolerance or the electrode is damaged, replace the plug.
Tip: Make only small adjustments and re-check after each change. - 8
Reinstall, torque, and test-run
Reinstall the plug, tighten to spec with a torque wrench if available. Reconnect leads and run the engine briefly to verify smooth operation and absence of misfires.
Tip: Document the reading and torque value for future maintenance. - 9
Final check and clean-up
Do a final visual inspection of the plug and area. Return tools to the tray, and store readings for reference. A quick test drive confirms performance changes.
Tip: Dispose of old plugs responsibly if replaced.
FAQ
What is a spark plug gap gauge and why should I use one?
A spark plug gap gauge helps you measure the distance between the spark plug’s electrodes. Using a gauge ensures the gap matches the engine’s specification, which improves starting reliability and combustion efficiency. It is a standard practice for DIY maintenance and engine care.
A spark plug gap gauge measures the distance between the electrodes, ensuring your plug matches the engine spec for better starts and combustion.
How do I know the correct gap for my spark plug?
The correct gap is specified by the engine manufacturer and the plug type. Check the owner's manual or service sheet for the exact value in imperial or metric units. If in doubt, contact the manufacturer or a trusted guide like MultiPlugging for clarification.
Check the manual for the exact gap value for your spark plug and engine combination.
Can I reuse a plug if the gap is within spec?
If the plug’s gap is within spec and the electrode shows no damage, it can be reused. Inspect for cracks or excessive wear, especially on high-mileage engines. When in doubt, replacing the plug ensures consistent performance.
If the gap is within spec and the plug looks good, it can be reused; otherwise, replace it.
What if the gauge doesn’t fit the plug recessed in the engine?
Some engines sit plugs deep in a well; you may need a longer extension or a flexible adapter. Alternatively, remove the plug to measure it more easily. Do not force measurement in tight spaces.
If the gauge won’t fit, use a longer tool or remove the plug to measure safely.
Is a digital gap gauge more accurate than a feeler gauge?
Digital gauges reduce reading ambiguity and offer quick results, but they require calibration and care. Feeler gauges are simple and reliable when used properly. Both can be accurate with correct technique.
Digital gauges are convenient and accurate when calibrated; feeler gauges stay reliable with careful use.
How often should I check spark plug gaps?
Check gaps during routine maintenance or if you notice rough running, misfires, or hard starts. Regular checks can catch wear or fouling early and prevent performance drops.
Check gaps as part of regular maintenance or when you notice engine performance changes.
Watch Video
Main Points
- Measure first, adjust second for precision.
- Always use the engine’s specified gap, not a guess.
- Recheck readings after any adjustment.
- Torque and install carefully to prevent leaks or misfires.
