zfr5f Spark Plug Cross Reference Guide for DIYers

Understanding zfr5f spark plug cross reference

zfr5f spark plug cross reference is a catalog-driven approach that helps you locate compatible plugs across brands by comparing the core specs: heat range, thread size, reach, and electrode design. According to MultiPlugging, reliable cross-referencing starts with a clear parameter set and ends with a correct physical fit in your engine. This section explains how cross-reference catalogs are structured and why your engine’s characteristics matter more than the brand name. For DIY enthusiasts, the goal is to avoid misfires, fouling, and possible engine damage by choosing a plug that mirrors the original specifications as closely as possible. The keyword appears naturally here: zfr5f spark plug cross reference.

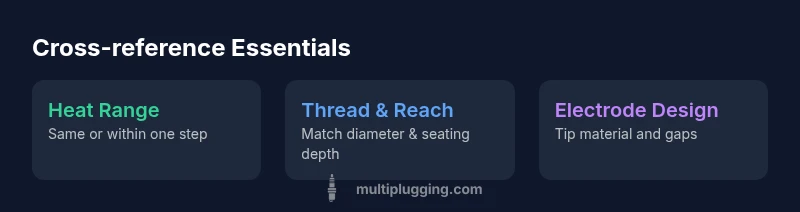

Key factors for interchangeability

Interchangeability depends on several core specs: heat range, thread size, reach, and electrode design. For zfr5f cross-references, the most important elements are:

• Heat range alignment (same or within one step cooler/hotter depending on engine design)
• Thread diameter and thread pitch
• Reach (how far the plug seats into the combustion chamber)
• Ground and center electrode configuration; Some engines require specific tip designs such as platinum or iridium tips

Brand labels matter less than matching these specs. Always cross-check with official data and your vehicle manual. Cross-reference data is a guide, not a guarantee; confirm with manual and chart. This approach helps DIYers avoid misfires and fouling when replacements are needed.

Step-by-step cross-reference workflow

1. Gather the original plug’s key specs from the owner’s manual or a known good cartridge. 2) Find a cross-reference chart that lists heat range, thread size, and reach for your target brands. 3) Filter results to matches on heat range, thread size, and reach. 4) Check electrode design (tip material) and gaps where provided. 5) Verify mounting torque and seating depth in the vehicle’s service guide. 6) If multiple candidates remain, compare fuel economy, emissions specs, and warranty notes. 7) physically inspect the selected plug for correct seating before installation. The goal is a safe, precise fit.

Common pitfalls and how to avoid them

• Assuming exact model numbers are interchangeable across brands. Always verify core specs instead.
• Ignoring heat-range differences can lead to misfires or poor idle.
• Overlooking thread size or reach can prevent proper seat and sealing.
• Relying solely on images or online listings; always cross-check with official data from multiple sources.
• Not considering electrode design changes when moving to newer spark plug families.
• Skipping manual torque specifications, which can strip threads or loosen under load. Following the recommended procedure reduces risk and ensures reliability.

Practical mapping across brands (without SKUs)

Mapping across brands relies on three axes: heat range, thread size/reach, and electrode design. When a direct SKU cross is unavailable, you map to the closest equivalent in heat range, verify thread fit, and confirm seating depth. In practice, a brand-agnostic approach uses these aligned specs to identify suitable substitutes, rather than chasing a one-to-one SKU swap. This method minimizes the risk of misfires and ensures predictable combustion characteristics.

Tools and safe practices for DIY cross-referencing

Equip a basic toolkit: a torque wrench, a thread depth gauge, a feeler gauge, and a lighted magnet for plug handling. Use manufacturer-recommended torque values and anti-seize where appropriate. Maintain a clean work area to prevent debris from entering the combustion chamber. Always wear eye protection and disconnect the battery when working near ignition components. This section emphasizes safety and accurate measurement rather than brand-specific recommendations.

Validating data against your vehicle manual

Even when a cross-reference chart points to a close match, your vehicle’s manual provides the definitive guidance on ignition components. Cross-reference data should be used to shortlist candidates, then validated against the manual’s specifications for heat range, plug reach, and installation torque. If in doubt, consult a trusted technician or the official service bulletins from vehicle manufacturers. Brand-agnostic validation protects against misfires and engine damage.

Brand-agnostic guidance and where to find official cross-reference data

The most reliable cross-reference data originates from manufacturer service data and reputable catalogs. The MultiPlugging team recommends using multiple sources to verify compatibility, including OEM maintenance manuals and independent, brand-agnostic references. Always confirm with your vehicle’s make, model, and year; use cross-reference data strictly as a guide. The overarching principle is consistency across specs, not chasing a perfect brand-name match.
