Spark Plug Reading Chart: A Practical DIY Guide
Learn how to use a spark plug reading chart to diagnose ignition health, identify fouling, and decide when to clean or replace plugs for optimal performance.
Using a spark plug reading chart lets you translate plug color, deposits, and electrode wear into concrete maintenance actions. You’ll quickly assess ignition quality, decide whether to clean, gap, or replace the plug, and tailor fuel and ignition adjustments for your engine. This guide gives you a fast, reliable framework for DIY diagnostics.
Why a spark plug reading chart matters
According to MultiPlugging, a spark plug reading chart helps you translate visual clues from a plug into actionable engine diagnostics. By comparing color, deposits, and electrode wear against a standardized chart, car owners can estimate combustion quality, detect misfires early, and decide whether cleaning, replacement, or a fuel-tuning adjustment is needed. Using the chart consistently reduces guesswork and supports safer DIY maintenance, especially for engines that run on aging fuel or inconsistent schedules. This method is especially valuable for weekend hobbyists who want clear, repeatable criteria rather than vague impressions. The chart also provides a framework you can share with a mechanic, so you both speak the same diagnostic language when you discuss a service plan.
Understanding color codes: deposits and insulator glaze
A plug's appearance tells a story about combustion and lubrication. Light tan or grayish-brown insulators usually indicate a healthy burn, while dark sooty deposits point to rich fuel, poor ignition timing, or oil intrusion. A chalky white insulator can signal lean mixtures or overheating. The spark gap and electrode wear also influence color impressions. When you use a spark plug reading chart, note both color and texture (smooth glaze vs crusty coating) to form a reliable diagnosis. Remember to account for engine type, fuel quality, and recent maintenance when mapping your observations to a chart category.
Common patterns and what they indicate across engines
Across most gasoline engines, charts categorize readings into several patterns: healthy browns; mild fouling; heavy carbon deposits; oil-fouled plugs; and damp or damp-soaked plugs after a cold start. Diesel plugs, high-compression engines, or direct-injection setups may show different cues, but the core idea remains: deposits reflect fuel mixture, burn temperature, and lubrication. When you spot unusual patterns, use the chart as a first-pass screen and plan follow-up tests such as compression testing, spark timing checks, or fuel-system diagnostics.
The basic categories on a spark plug reading chart
Categories typically include color, deposits, insulator wear, and electrode gap. Each category maps to probable causes: too-rich fuel, wrong heat range, misfiring, oil consumption, or coolant intrusion. If you see shiny metallic deposits, that may indicate fuel additives or frayed ignition wires. Use this framework to guide further testing and balance subjective impressions with objective measurements like gap and torque values.
Step-by-step: prepare and inspect the plug
Begin by powering off the engine and letting it cool completely. Gather tools, remove one spark plug at a time, and inspect the tip, contaminant distribution, and ceramic color. Wipe the plug clean with a lint-free cloth, taking care not to alter deposits. Compare to the chart and note which category it fits. If you’re unsure, capture a clear photo in good light and compare later or consult your service manual for engine-specific visuals.
Step-by-step: compare to chart and interpret
Hold the plug under a clean light and align the observed features with the closest chart category. Record color, deposits, insulator wear, and gap size. If the plug matches 'healthy burn,' you may re-install. If it matches 'oil-fouled' or 'rich fuel' categories, plan appropriate action such as gasket check or air-fuel adjustment. Use a small notebook or a digital log to track patterns over time and avoid mistaking a one-off reading for a trend.
How to adjust gaps or replace based on readings
Use a feeler gauge to verify the gap matches the manufacturer’s specification after re-installation. If deposits suggest maintenance beyond a simple cleaning, replacing the plug with the correct heat range is usually the best option. Always apply anti-seize or torque header threads when required by your model, and torque to the manufacturer’s specification. If you’re unsure about heat range, consult the manual or a trusted guide for your engine family.
Using the chart across different engines and fuels
Not every engine uses the same carbon deposit pattern, and fueling with ethanol blends alters combustion. When using a chart, consider engine type (gasoline, hybrid, or small-displacement) and the fuel delivery system. Direct-injected or turbocharged engines may show faster glaze formation or distinct deposit patterns. The general rules still apply: match the chart reading with a targeted test plan, then adjust air intake, fuel quality, or ignition timing as needed.
Common mistakes and how to avoid them
Misreading color due to residual oil on the threads or touching deposits with a bare finger can skew results. Don’t rely on a single plug—inspect at least two or three, and note position differences. Always re-install plugs with the coil boot connected and the engine off to avoid electric shocks. Keep plugs marked by cylinder to avoid cross-threading or incorrect reinstall order, and clean up any moisture before reassembly to prevent short-term misreads.
Maintenance routines that leverage plug readings
Establish a quarterly reading routine: remove, inspect, and log color and deposits, then compare across cycles. A spark plug reading chart becomes a tool for diagnosing misfires earlier and maintaining consistent combustion. Link readings to service tasks like air-filter changes, ignition coil testing, and fuel system checks. Over time, the chart supports a proactive maintenance mindset rather than reactive fixes, helping you extend plug life and engine health.
Troubleshooting: what unusual readings mean
Unusual readings such as white insulators in a hot engine may indicate overheating, while damp deposits can signal coolant intrusion. If readings do not fit any chart category, you may have a rare fault like a cracked plug or misfiring cylinder, necessitating further diagnostics with a professional or an advanced scanner. Document any anomaly and compare against multiple service intervals to determine if it’s a persistent issue or a transient condition.

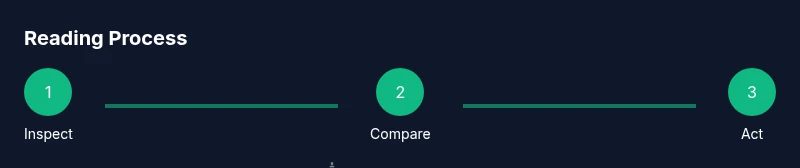

Practical workflow: from reading to action
Create a simple workflow: pull the plug, observe, record the chart category, decide action, perform the maintenance, and re-check after a test run. Maintain a running log to track improvements and timing. A disciplined approach helps you catch issues early and reduces costly repairs. By using the spark plug reading chart consistently, you’ll develop a reliable, do-it-yourself diagnostic routine that supports better engine health over time.
Tools & Materials
- Spark plug socket wrench (6-point)(With a ratchet handle; avoid damaged plugs)
- Spark plug gap gauge(Check the recommended gap by engine spec)
- Torque wrench(Torque to OEM specification during reinstall)
- Anti-seize compound (optional)(Apply only if recommended by manufacturer)
- Replacement spark plugs (same heat range)(Carry spares for quick swap)
- Dielectric grease(Use on boot terminals if needed)
- Lint-free cloths(Clean plugs without Abrasion)
- Small brush or compressed air(Remove debris around plug wells)
- Gloves and eye protection(Safety gear for DIY work)
- Owner’s manual or service guide(Engine-specific specs and procedures)
Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety checks
Park on a flat surface, engage parking brake, and disconnect the negative battery if your vehicle requires it for spark plug access. Ensure the engine is completely cool before starting. Gather all tools and place a tray to catch any dropped parts.
Tip: Working in a well-lit, ventilated area reduces misreads and keeps you safe. - 2
Remove one spark plug at a time
Loosen the spark plug boot or ignition coil carefully, twist slightly to break contact, and pull straight out to avoid damaging the plug or wire. Do not pull on the wire alone; use the boot grasp.
Tip: Label or mark plug positions to avoid cylinder mix-ups. - 3
Inspect the plug visually
Examine tip, electrode, and insulator for color, deposits, and cracks. Wipe away loose debris with a clean cloth, but avoid rubbing off deposits that are diagnostic clues.
Tip: Photograph the plug from multiple angles for later comparison. - 4
Measure the gap and compare
Use a gap gauge to measure the center electrode gap and verify it matches the vehicle’s specification. Adjust if necessary using the correct tool, not by bending the electrode with pliers.
Tip: Small gap changes have a big effect on ignition performance. - 5
Decide on cleaning or replacement
If deposits are light and the plug is otherwise healthy, cleaning with approved methods can be acceptable. For heavy fouling or damaged insulators, replace with a plug of the same heat range.
Tip: Do not reuse plugs with cracked ceramic or melted electrodes. - 6
Reinstall with proper torque
Reinsert the plug and tighten to the manufacturer’s torque spec. Reconnect the boot or coil carefully, ensuring a snug, seal contact to prevent misfires.
Tip: Over-tightening can strip threads and cause oil leaks. - 7
Run the engine and verify
Start the engine and listen for smooth operation. If a misfire or rough idle occurs, recheck all plugs and connections and consider a longer-term fuel/ignition diagnosis.
Tip: A quick test drive after replacement helps confirm improvements. - 8
Document results
Log the reading, action taken, and the results after a short drive. Tracking changes over time helps catch gradual engine health trends.
Tip: Keep a simple notebook or digital log for future reference.
FAQ
What is a spark plug reading chart and how does it help?
A spark plug reading chart translates visual signs on a plug—color, deposits, and wear—into likely engine conditions and recommended actions. It helps DIYers decide between cleaning, replacement, or further diagnostics.
A spark plug chart translates plug signs into engine conditions to guide maintenance.
Can I use a spark plug reading chart on any vehicle?
Charts are broadly applicable, but always cross-check with your vehicle's manual. Engine type, fuel, and heat range affect readings, so tailor the chart checks to your specific engine family.
Charts are general; check your manual for engine specifics.
What does a black, sooty plug mean?
Black, sooty deposits typically indicate overly rich fuel or poor air intake. It may also suggest weak ignition timing or oil in the combustion chamber requiring further checks.
Sooty plugs usually mean too-rich fuel or mis-timing; check air, fuel, and ignition.
How often should I read the spark plugs?
Reading frequency depends on driving style and engine age. A conservative approach is to inspect during routine maintenance every 15,000 to 30,000 miles, or when fuel economy or starting behavior changes.
Check plugs during routine service every 15k–30k miles or if performance changes.
If readings don’t match the chart, what should I do?
If observations don’t fit any category, repeat the inspection, check multiple plugs, and consider professional diagnostics. Anomalies can indicate uncommon faults like cracked plugs or injector issues.
If readings don’t fit, repeat checks and consider professional diagnostics.
Watch Video
Main Points
- Use the spark plug reading chart for consistent diagnostics.
- Different deposits indicate different maintenance needs.
- Always torque plugs to spec after inspection.
- Maintain a running log of plug readings and actions.
