Spark Plug Guide for a 6-Cylinder Engine
Learn to diagnose, select, and replace spark plugs on a 6-cylinder engine with safe, step-by-step guidance. This DIY article covers tools, troubleshooting, torque, and maintenance, helping you boost reliability and fuel economy.
This guide helps you diagnose, select, and replace spark plugs on a 6-cylinder engine, with clear safety steps, torque guidance, and maintenance tips. You’ll learn how to assess symptoms, choose the right plug type, and perform a safe replacement to restore performance. According to MultiPlugging, sticking to OEM specs and proper torque is key to reliable firing in a spark plug 6 cylinder engine.
Understanding spark plugs in a 6-cylinder engine
A spark plug is the small, high-temperature device that ignites the air-fuel mix inside each cylinder. In a typical 6-cylinder engine, the plugs work in sequence as the crankshaft turns. For a spark plug 6 cylinder engine, maintaining a consistent gap, the correct heat range, and clean electrodes is essential for even firing, smooth idle, and efficient fuel use. When one plug fouls or wears, others may overwork, leading to misfires and degraded performance. This section explains how plugs affect combustion, why a single faulty plug can ripple through the engine, and how a typical 6-cylinder layout impacts service steps. According to MultiPlugging, regular inspection and timely replacement prevent misfires and extend engine life.
Tools and materials for a 6-cylinder spark plug service
Before you start, assemble the right tools and parts to avoid delays. Essential items include a spark plug socket, an extension, a ratchet, a torque wrench, and a boot puller if your engine uses coil-on-plug boots. You will also need a fresh set of spark plugs that match your OEM specification and a small amount of anti-seize compound or dielectric grease depending on manufacturer guidance. Have a microfiber rag, compressed air, and a magnetic pick-up tool for debris removal. Optional items include a gap tool for precise tuning and a torque-angle gauge for final seating. The goal is to perform one plug per cylinder in a clean, dry environment, minimizing cross-thread risk and keeping the ignition system sealed.
Safety and prep for spark plug replacement
Safety first: work on a cool engine, disconnect the battery if you’ll be loosening coil packs or ignition wires near the top of the engine. Wear eye protection and gloves; avoid contact with hot metal or coolant. Work in a well-ventilated area and keep a fire extinguisher handy. When removing plugs, avoid forcing a stubborn plug; back it out slowly and check alignment. Keep old plugs in a labeled container to prevent mix-ups. After installation, verify there are no loose wires or boots, and we recommend rechecking torque once the engine cools.
Diagnosing symptoms before replacing plugs
If your engine runs rough, hesitates, or experiences misfires, worn or fouled plugs could be the cause. MultiPlugging analysis shows that the majority of misfires in a spark plug 6 cylinder engine originate from worn electrode gaps or incorrect gaps rather than complete plug failure. Also watch for reduced fuel economy, rough idle, or trouble starting. Use a scan tool to check for misfire codes by cylinder, then inspect the corresponding plug for fouling, oil leaks, or carbon buildup. This pre-check helps you decide whether replacement is truly needed or if a cleaning, wiring issue, or coil fault is the culprit.
Choosing the right plugs and gap for a 6-cylinder engine
Select plugs that match the OEM specification for your engine family. In general, consider heat range, electrode material (copper, platinum, iridium), and the gap recommended by the manufacturer. For many modern engines, iridium or platinum plugs offer longer service life, but the OEM gap must be preserved to ensure optimal ignition timing and combustion efficiency. Keep a spare gap tool on hand to verify that each plug is within tolerance after installation. If you’re unsure, consult your vehicle’s service manual or a trusted mechanic. This choice affects cold starts, acceleration, and fuel economy over the life of the engine.

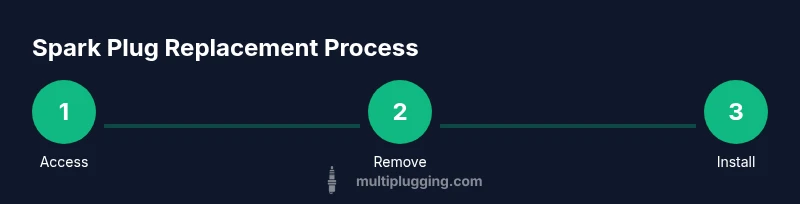

Step-by-Step: removal, inspection, gap, and replacement (high-level guidance)
This section provides a practical workflow for a spark plug service on a 6-cylinder engine. Work sequentially on each cylinder, labeling components to avoid misplacement, and test fire after completing a row of cylinders.
Reassembly, checks, and final testing
Reassemble the ignition components carefully, ensuring each boot is fully seated and reconnecting any wiring harnesses. Start the engine and listen for a smooth idle, ensuring there are no misfires or abnormal noises. If a misfire persists, re-check the exact cylinder, plug seating, and wiring. A short, careful drive can reveal subtle issues that aren’t evident at idle. Ensuring proper torque on each plug is essential for long-term reliability.
Authoritative sources and further reading
For deeper, standards-based context, refer to authoritative sources. These include NHTSA for safety considerations and SAE for engineering standards, alongside major publications that cover spark plug science and practice. https://www.nhtsa.gov, https://www.sae.org, https://www.popularmechanics.com
Maintenance schedule and long-term care for a 6-cylinder spark plug
After installation, follow a maintenance plan that aligns with OEM guidance. Replacement intervals vary by vehicle design, driving conditions, and plug type, but typical ranges span from tens of thousands to over a hundred thousand miles. In practice, monitor performance indicators—rough idle, misfires, or degraded fuel economy—and perform preventative checks at regular service intervals. Adhering to OEM recommendations helps preserve ignition efficiency and engine longevity.
Tools & Materials
- Spark plug socket with handle(Magnetic socket preferred; length enough to reach deep wells)
- Ratchet with extension(3/8 inch or 1/2 inch drive as required by your tool kit)
- Torque wrench(Spec specifies final seating torque per OEM; use a torque-angle gauge if needed)
- Anti-seize compound (optional)(Apply sparingly if recommended by OEM; some manufacturers advise against it on newer heads)
- Dielectric grease(Apply to plug boot interiors to ease future removal and seal moisture)
- New spark plugs (OEM spec)(Match heat range, thread size, and reach to engine model)
- Gap tool(Verify and adjust plug gap to OEM specification)
- Magnet or needle-nose pliers(For retrieving dropped hardware or debris)
- Rag and cleaner(Keep the area clean to prevent contamination of the combustion chamber)
Steps
Estimated time: 60-90 minutes
- 1
Prepare and safety-check
Park on level ground, engage parking brake, and disconnect the battery if you’ll be removing coil packs. Gather tools, wear eye protection, and ensure the engine is cool. Label each ignition coil or wire to cylinder mapping to avoid misconnection later.
Tip: Labeling helps you track which plug corresponds to which cylinder and prevents cross-connection. - 2
Access the plugs
Remove any engine covers or obstructions. Depending on engine design, you may need to remove coil packs or spark plug wires to access each plug. Work one cylinder at a time to reduce confusion.
Tip: If coils are stubborn, apply a short, controlled wiggle while pulling; never yank. - 3
Remove the old plug
Gently loosen the plug with a spark plug socket and extension. Turn counterclockwise until the plug backs out. Keep the socket perpendicular to avoid cross-threading.
Tip: Remove plugs slowly to prevent thread damage; a cross-thread can ruin the head. - 4
Inspect the plug
Look at electrode wear, fouling, and deposits. Note color and condition to determine if replacement is necessary or if cleaning suffices. Record observations cylinder by cylinder.
Tip: A fouled plug often indicates another issue (oil, fuel mixture, or ignition problems) beyond simple replacement. - 5
Check and adjust the gap
If using non-OEM plugs, verify the gap with a gap tool. For OEM plugs, ensure the gap matches the manufacturer spec. Adjust gently as needed to avoid damaging the electrode.
Tip: A slight mis-gap can cause misfires or poor cold starts. - 6
Prepare the new plug
If required, apply a thin layer of anti-seize or dielectric grease per OEM guidance. Check the thread and diameter before installing.
Tip: Only a light coat is needed; excessive anti-seize can alter torque. - 7
Install the new plug
Thread the plug by hand to seat the threads cleanly, then tighten to the OEM torque specification. Use a torque wrench for accuracy; never overtighten.
Tip: Hand-start to ensure threads engage properly and avoid cross-threading. - 8
Reconnect ignition components
Reinstall the coil packs or plug boots, ensuring full seating and proper orientation. Reconnect any electrical connectors and ensure no tools remain in the engine bay.
Tip: A loose boot can cause misfires—double-check each connection. - 9
Test and verify
Reconnect the battery, start the engine, and listen for smooth operation. Check for any warning lights or codes; perform a brief road test to confirm the repair.
Tip: If timing or misfire persists, recheck the corresponding cylinder plug and wiring.
FAQ
Do I need to replace all plugs at once in a 6-cylinder engine?
Replacing all plugs at once helps maintain consistent firing and avoids imbalanced performance. If one plug is weak, test others; however, OEM guidelines may vary.
It's usually best to replace all plugs together to keep firing even across cylinders.
Can I reuse old spark plugs?
In most cases, used plugs should be replaced. Reusing worn plugs can lead to misfires and engine damage. Inspect for wear and deposits to decide.
Usually, you should replace worn plugs rather than reuse them.
What torque should I use when seating plugs?
Use the OEM torque specification for the spark plugs and engine design. If you don’t have the spec, consult the service manual or a trusted mechanic.
Torque should follow the manufacturer’s spec to prevent damage.
Will replacing plugs improve fuel economy?
Replacing worn plugs can improve fuel economy if misfires or incomplete combustion were reducing efficiency. If the engine was already performing well, gains may be modest.
Replacing bad plugs can help your car get better gas mileage.
What if the engine still misfires after replacement?
If misfires persist, check ignition coils, wiring, and the injector for that cylinder. A diagnostic scan can pinpoint the next fault area.
If misfires continue, recheck coils and wiring and scan for codes.
What’s the difference between copper and iridium plugs?
Copper plugs are cheaper and finish quickly, while iridium plugs last longer and provide stable performance in many engines. OEM guidance should guide the choice.
Iridium plugs often last longer, but follow what the manufacturer recommends.
Watch Video
Main Points
- Follow OEM specs for heat range and torque.
- Replace all plugs for uniform ignition performance.
- Label and organize components to avoid cross-connections.
- Inspect wire/coil health when plugs show abnormal wear.
- Test-run the engine to confirm a clean, smooth idle.
