Picture of a Bad Spark Plug: Visual Diagnostics and Safe Replacement
Discover how to read a picture of a bad spark plug, identify fouling and overheating signs, and follow a safe, practical replacement process with a clear troubleshooting flow.
If you’re looking at a picture of a bad spark plug, the most common issue is fouling or burning that indicates overheating or rich fuel; this is usually the culprit behind performance loss. The quick fix is to replace the affected plug(s) with a new one, check the gap, and test ignition and compression to confirm the repair.
Visual reality: interpreting a picture of a bad spark plug
According to MultiPlugging, a picture of a bad spark plug often reveals fouling, oil deposits, or signs of overheating. These visual cues correlate with ignition and fuel-system problems and help you decide the next steps before you turn a wrench. In 2026, DIY diagnostics emphasize starting with the most obvious visual clue and verifying with simple tests rather than guessing. The goal is to translate a photo into a safe, practical repair path. The term picture of a bad spark plug is not just cosmetic—it's a clue that prompts a targeted approach to ignition, fuel delivery, and engine health.

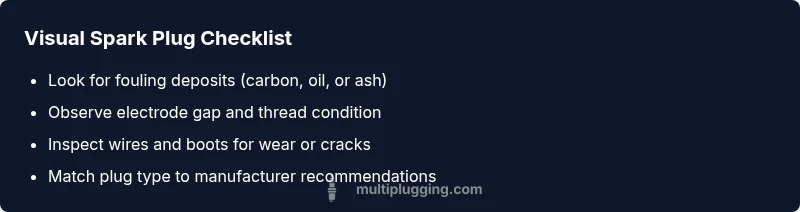

Common visual cues from the photo
- Black carbon buildup on electrode or insulator: often indicates a rich fuel mixture or incomplete combustion.
- Oily deposits on the tip or threads: suggests oil intrusion from worn rings or valve-cover gasket leaks.
- White or crusty deposits: could indicate coolant intrusion or extreme overheating.
- Melted or blistered ceramic: a sign of severe pre-ignition or an improper heat range.
- Damaged or gapped electrodes: visible wear calls for replacement.
Immediate checks you can perform after seeing the image
- Confirm the plug's torque and wrench compatibility before removal.
- Inspect the ignition coil and spark plug wire for cracks or burns.
- Check the gap spec for your engine and determine if a replacement will be necessary.
- If multiple cylinders show similar symptoms, inspect fuel delivery and ignition system as a whole.
Diagnostic flow you can follow when you spot a bad plug
This section lays out a practical path from symptom to solution. Start with the simplest observation, then verify with quick tests, and finally implement a fix. If a step doesn’t resolve the issue, proceed to the next step in the sequence to avoid missing a root cause. If you’re uncertain at any point, seek professional help rather than guessing, especially when electrical components or high-compression engines are involved.
Safety and proper handling during plug replacement
- Always disconnect the battery before working on ignition components to prevent sparks.
- Allow the engine to cool to avoid burns.
- Wear gloves and eye protection when working near the engine. Use the right tools to prevent cross-threading or dropping parts into the combustion chamber.
Prevention and maintenance tips to extend plug life
- Use the correct heat range and electrode type as recommended by the manufacturer.
- Maintain clean air intake and proper fuel quality to reduce fouling.
- Schedule visual inspections during routine service and replace plugs in sets when necessary.
Steps
Estimated time: 45-60 minutes
- 1
Gather tools and safety gear
Collect a spark plug socket, ratchet, extension, and a torque wrench. Wear gloves and eye protection. Disconnect the battery before starting to minimize the risk of shocks or sparks.
Tip: Label each plug location so you know which cylinder you’re servicing. - 2
Relieve pressure and locate the plug
Open the hood, locate the correct cylinder’s plug, and ensure the engine is cool. Remove any shielding if necessary to access the plug.
Tip: Consult the service manual to confirm the exact plug position for your engine. - 3
Remove the old spark plug
Loosen the plug and carefully lift it out with the socket. Avoid applying side force to the ceramic to prevent cracks or breakage.
Tip: Keep debris away from the plug well and threads during removal. - 4
Inspect plug and gap
Examine deposits, wear, and the electrode gap. Compare the gap to your engine’s spec and decide whether to replace or adjust.
Tip: If in doubt, replace rather than risk improper gap. - 5
Install the new plug and gap to spec
Thread the new plug by hand to avoid cross-threading, then snug and torque to manufacturer spec. Reconnect any wires or boots carefully.
Tip: If using anti-seize, follow the head manufacturer’s guidance. - 6
Reassemble and test
Reconnect everything, reconnect the battery, and start the engine. Listen for misfires and verify smooth idle. If misfires persist, re-check connections and consider further diagnostics.
Tip: A safe test drive can reveal issues not apparent at idle.
Diagnosis: Photo shows a visibly fouled or burnt spark plug or plug well
Possible Causes
- highFouled plug due to oil or fuel deposits
- mediumOverheating causing ceramic or edge damage
- lowElectrical issue (bad coil or wire) contributing to misfire
Fixes
- easyReplace the affected plug(s) with new ones and re-gap to spec
- mediumInspect and possibly replace ignition coil and wires if misfire persists
- mediumCheck engine fuel system and air intake for causes of fouling; clean or service as needed
FAQ
What does a fouled spark plug look like in a photo?
A fouled plug shows dark carbon deposits, oil on the tip or threads, or white crusts. These signs point to fuel issues, oil intrusion, or overheating.
A fouled plug looks dark and dirty, often with oil or white crusts. This points to fuel, oil, or overheating problems.
Can a bad spark plug cause misfire?
Yes, a bad spark plug can cause misfires. Inspect other plugs as well and test ignition components if misfires persist.
Yes, misfires can result from a bad plug; check the rest of the plugs and ignition hardware.
Should I replace all plugs if one looks bad?
If multiple plugs show signs of wear or fouling, replace them in a set to maintain balanced performance.
If several plugs look worn, you should replace them together for best results.
How often should plugs be visually inspected?
Visual inspection is part of regular service. Check plugs during routine maintenance and whenever you notice performance changes.
Look at the plugs during regular service or if performance changes occur.
Is it safe to drive with a fouled plug?
Driving with a fouled plug can worsen engine problems. Replace promptly and test the system after installation.
Driving with a fouled plug isn’t safe long-term; replace and test soon.
Watch Video
Main Points
- Inspect the plug visually to guide next steps
- Replace fouled plugs promptly to restore performance
- Re-gap and torque to spec during replacement
- Perform follow-up tests to confirm the fix and prevent recurrence
