Live Wires Spark Plug Wires: Diagnosis, Replacement, and Safety
Learn to diagnose and safely replace live wires spark plug wires. This educational guide covers wear signs, wire types, and a step-by-step replacement process to restore ignition efficiency and engine performance.
Result: You will diagnose, test, and safely replace live wires spark plug wires to restore reliable ignition. You’ll learn how to inspect boots, identify cracked insulation, test resistance with a spark tester, and perform a proper replacement. Gather basic hand tools, a spark plug socket, dielectric grease, and a replacement set of wires before you start.
Safety first: handling live wires spark plug wires
Working with ignition components carries the risk of electric shock and engine damage if you rush or bypass safety steps. Always begin with the engine off and cooled, the battery disconnected, and protective gear in place. Keep the area dry and away from moving parts. Live wires spark plug wires can carry stored energy even when the engine is not running, so never rely on intuition—double-check connections and use insulated tools. According to MultiPlugging, prioritizing safety reduces the chance of shocks or dropped tools that could injure you or damage the vehicle. This section lays the groundwork for safer handling and sets expectations for what follows in the diagnostic and replacement process.
Understanding how spark plug wires work
Spark plug wires are a critical link in the ignition system, delivering high-voltage energy from the coil to the spark plugs. Each wire has a boot, a conductive core, and an insulating layer designed to resist heat, moisture, and chemical exposure. The boot must seal against moisture and prevent arcing at the distributor or coil boot. Resistance specs vary by vehicle and wire type, affecting ignition timing and coil loading. When a wire fails, the engine can misfire, reduce power, and increase fuel consumption. This is why diagnosing worn live wires spark plug wires is essential for maintaining peak engine performance and fuel economy.
Signs your spark plug wires need replacement
Spotting worn or failing wires early saves time and comfort on the road. Look for cracks or obvious insulation damage, stiffness or cracking of the boots, visible wear at bend points, or arcing around the boots during high-load conditions. A rough idle, hesitating acceleration, misfires under load, or a check-engine-light may point to faulty wires. A multimeter or specialized spark tester can reveal high resistance or open circuits; note that some deterioration is internal and not easy to see from the outside. Consistent misfires or power loss are strong indicators that live wires spark plug wires should be inspected and likely replaced.
Choosing replacement wires: boot types, resistance, and materials
Replacement wires come in various boot lengths and resistance profiles tailored to engine design. Match boot style (straight vs. angled) and length to your engine’s original routing. For performance vehicles, low-resistance wires can improve current delivery, whereas standard passenger cars benefit from wires that meet OEM specifications. Materials matter: silicone insulation offers heat resistance and longevity, while FEP or other insulations may provide better dielectric strength. Always verify compatibility with your engine model and ensure the manufacturer specifies the correct resistance target for your ignition system.
Tools, parts, and safety checks before you start
Prepare a clean, organized workspace and gather the required tools: a spark plug wire set, dielectric grease, a spark plug socket, ratchet, extensions, boot removal tool, and protective gloves. Inspect the engine bay for oil or coolant leaks that could affect wiring. Ensure your replacement wires are specifically designed for your vehicle’s make, model, and year. A careful check of the path of existing wires helps avoid routing issues that could lead to wear or snagging around moving components.
Replacement overview: treating wiring with care
Replacing spark plug wires is more than swapping boots; it’s about preserving routing and preventing cross-connections. Begin by labeling or tracing wires to maintain the original order, especially on multi-wire configurations. When you remove a wire, note its length, boot shape, and any unique routing features. Compare new wires to the old ones to confirm length and fit. Install the new set one wire at a time in the same sequence, avoiding contact with hot components. Proper seating of boots is essential to prevent arcing and ensure reliable connection.
Post-install tests and finishing touches
After installation, recheck all connections for a snug fit. Reconnect the battery and briefly run the engine to observe idle quality and acceleration response. Listen for any misfires or roughness and verify that the ignition system is delivering a clean spark. If the engine runs smoothly and power delivery is even, secure the wiring away from belts or moving parts with clips or wrappers. Finish by applying a light coat of dielectric grease to the boot interiors to ease future removal and improve moisture resistance.
Common mistakes and troubleshooting
Common mistakes include mixing up wire routing, using incorrect lengths, or failing to remove the battery before starting. Another pitfall is over-tightening boots, which can damage the conductor. If misfires persist after replacement, recheck ground connections, coil condition, and the possibility of a faulty plug or boot. For engines with coil-on-plug configurations, ensure the coil boots seat properly and that no arcing occurs at the coil housing.
Maintenance tips to extend wire life
To extend the life of live wires spark plug wires, keep the engine bay clean and dry, inspect wires during routine maintenance, and avoid exposing them to harsh heat from exhaust components. Replace in matched sets to maintain even resistance and timing. Periodic checks of boot integrity and insulation help catch wear before it becomes a problem. Keeping a spare set on hand is a prudent practice for older vehicles.
Tools & Materials
- Replacement spark plug wire set (matched to your vehicle)(Choose the correct boot style and length; check OEM spec for resistance)
- Dielectric grease(Apply a small amount inside boots for moisture seal and easier removal later)
- Spark plug socket with extension(Typically 5/8-inch or 13/16-inch depending on model)
- Ratchet, extensions, and a boot removal tool(Used to safely disconnect boots without damaging the wires)
- Wear safety gloves and glasses(Protect your hands from sharp edges and potential sparks)
- Torque wrench (optional)(Useful for certain accessories or if your vehicle requires torque specs for boots or boots clamps)
- Shop towels or rags(Clean as you go and wipe up any spills or oils)
- Multimeter or spark tester (optional)(Helps verify proper resistance and ignition delivery)

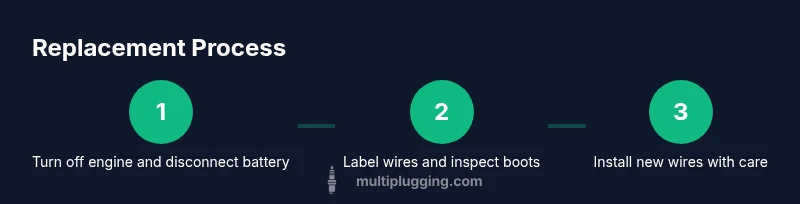

Steps
Estimated time: 60-90 minutes
- 1
Disconnect battery and locate wires
Ensure the engine is off and the negative battery terminal is disconnected. Open the hood and locate the spark plug wires, noting their routing. This prevents accidental shocks and misconnection during the replacement.
Tip: Take a quick photo of the wiring path for reference before removing any wires. - 2
Label wires and inspect boots
Label each wire with a numbered tag corresponding to its cylinder and boot position. Inspect boot integrity, insulation, and any signs of wear or arcing at the boot tip.
Tip: Label as you go to avoid cross-wiring and misrouting. - 3
Remove old wires one at a time
Grasp the boot, not the wire, and twist gently to detach. Do not yank or pull on the wire core; if resistance is high, use the boot removal tool to ease separation.
Tip: Work one wire at a time to preserve order and routing. - 4
Compare lengths and routes
Lay the new wires next to the old ones to confirm length and routing. Ensure the boots align with their cylinders and avoid sharp bends that could crack insulation.
Tip: Path the wires away from hot exhaust components and moving parts. - 5
Install new wires in order
Attach each new wire in the same sequence as the old set, seating boots firmly. Avoid forcing boots onto pins; if it doesn’t fit, remove and re-seat.
Tip: Double-check each boot seating to prevent misfires. - 6
Apply dielectric grease and seat boots
Lightly coat the inner surface of the boots with dielectric grease to improve seal and ease future removal. Re-seat boots until you hear or feel a click.
Tip: Grease helps with moisture resistance and reduces friction next time you service the wires. - 7
Reconnect battery and test idle
Reconnect the battery, start the engine, and listen for a smooth idle. If you hear roughness, recheck the wiring order and boot seating.
Tip: If misfires persist, recheck grounding points and coil connections. - 7
Run engine and confirm performance
Take the car for a short drive to verify acceleration and throttle response. Check for even RPM and absence of hesitation.
Tip: Keep a close ear for unusual sounds that could indicate a wiring issue. - 8
Final checks and cleanup
Secure wires with clips or ties away from belts and moving parts. Wipe down any grease and dispose of old wires responsibly.
Tip: Document the replacement in your service log for future maintenance.
FAQ
What are the signs of failing spark plug wires?
Common signs include rough idle, hesitation, engine misfires, reduced power, and a check engine light. Visual wear on boots or insulation is also a clue. If symptoms persist after inspection, replacement is often the best fix.
Common signs are rough idle, misfires, and reduced power. Visual wear on boots or insulation is a clue—if symptoms persist, replacement is usually best.
Can I replace spark plug wires myself?
Yes. With basic tools, careful labeling, and attention to routing, you can safely replace spark plug wires at home. Follow the vehicle’s service manual and safety precautions to avoid damage or injury.
Yes. You can replace spark plug wires yourself by following the manual and taking safety precautions.
Are spark plug wires and spark plugs interchangeable?
No. Spark plug wires are separate components and should be replaced only with matching wires designed for your engine. Spark plugs are installed separately and should be replaced based on service intervals and condition.
No. Wires and plugs are separate parts and should be replaced with the correct, matching components.
How long does a wire replacement typically take?
For most vehicles, a straightforward wire replacement takes about 60 to 90 minutes, depending on engine access and your comfort level with the task.
Most owners can complete it in about an hour to an hour and a half.
Should I use dielectric grease on boots?
Applying a small amount of dielectric grease inside the boots helps seal against moisture and makes future removal easier. Do not over-apply.
Yes, a thin layer inside the boots helps seal moisture and eases future removal.
What maintenance helps extend wire life?
Keep the engine bay clean and dry, inspect wires during routine service, and replace wires in matched sets when signs of wear appear. Proper routing and secure clips prevent premature wear.
Regular checks and proper routing help wires last longer.
Watch Video
Main Points
- Inspect boots and insulation for wear before replacement.
- Replace wires one at a time to preserve routing and avoid miswiring.
- Use dielectric grease inside boots to seal against moisture.
- Test engine performance after installation and adjust as needed.
- Maintain a matched set for consistent ignition across all cylinders.
