How to Know If a Spark Plug Is Good: A DIY Diagnostic Guide

What 'Good' Means for a Spark Plug

A healthy spark plug is one that fires reliably, maintains a consistent gap, and shows minimal wear on the electrodes and insulator. In practical terms, a good plug should ignite the air-fuel mix efficiently, contribute to smooth engine idle, and prevent misfires. Over time, heat causes electrode wear, deposits form on the insulator or threads become corroded, and those changes shift the spark timing or reduce spark quality. By understanding these signs, you can decide whether to clean, re-gap, or replace. Think of a good plug as a small, dependable ignition component that supports fuel economy, engine responsiveness, and overall reliability.

In this guide we’ll cover visual cues, measurement methods, and safe testing techniques suitable for DIY enthusiasts. This approach helps you avoid guessing and makes it clear when a plug has crossed the line from acceptable wear to replacement.

Visual Inspection: The First Clue

Visual checks are the fastest way to gauge plug health. Remove the plug and examine the electrode tip, insulator color, and shell for signs of wear or damage. Worn electrodes appear visibly rounded or eroded; heavy carbon or oil deposits signal misfiring or lubrication issues; glazing or cracks on the porcelain indicate heat and stress. A clean, light-colored insulator with a small, intact electrode edge generally suggests a healthy plug. Delicate porcelain can crack from overtightening or impact, so inspect for any chips or fractures. When in doubt, compare the removed plug to a new one of the same type to gauge wear more accurately.

Keep an eye out for oil on the threads or around the base—this can indicate gasket leaks or piston rings problems rather than a plug issue alone. If you notice oil or heavy fuel fouling, address the root cause in the engine system in addition to replacing the plug.

Gap Check: Why It Matters and How to Verify It

The electrode gap is crucial because it affects spark quality and flame propagation in the combustion chamber. A gap that’s too wide or too narrow can lead to misfires, starting problems, or reduced fuel efficiency. Use a gap gauge to measure the distance between the center and ground electrodes and compare it to your engine manual or the plug manufacturer spec. If the gap is outside the recommended range, you have three options: replace with a plug pre-gapped to spec, carefully re-gap with the correct tool, or replace if adjusting could risk damaging the plug. Be gentle—bending the electrode to adjust a gap can ruin the plug.

Always follow the vehicle manufacturer’s or plug maker’s specified gap; mismatching the gap can create performance issues even if the plug otherwise looks fine.

Electrical Tests You Can Do at Home

Electrical tests help confirm the plug’s ability to produce a spark. If you have access to a spark plug tester or a multimeter with a resistance function, you can check basic firing capability outside the engine. A healthy plug should show a strong, consistent spark when tested with a tester that simulates a live circuit. If the plug shows a weak, intermittent, or no spark, it is likely worn or compromised and should be replaced. Remember that many issues in an ignition coil, wiring, or ballast resistor can mimic a bad plug, so use the tester as part of a broader diagnostic approach.

For novices, a bench test with a dedicated spark plug tester is safer and easier than trying to observe spark inside a live engine. If you’re unsure about using electrical test equipment, consult a professional or an in-depth tutorial.

Cleaning vs Replacement: Choosing the Right Path

Cleaning a spark plug is only a temporary fix and may be appropriate for light carbon fouling or minor contamination. Light deposits can sometimes be removed with a proper brush and solvent, followed by re-checking the gap and insulation integrity. However, when deposits are heavy, the plug wears visibly, or there is fuel or oil fouling, cleaning is unlikely to restore reliable performance. In those cases, replacement is the safer, more predictable option. Remember that a plug is a consumable; even if it cleans up temporarily, the wear on the electrode and insulator will continue over time.

Also, address underlying engine conditions that cause fouling, such as overly rich fuel mixture, oil consumption, or poor ignition coil performance. Replacing the plug without correcting root causes will likely shorten the plug’s life again.

Deposits and What They Tell You

Different fouling patterns point to different engine issues. Oil fouling around the threads or insulator suggests an oil leak or piston/ring problem. Black sooty carbon deposits commonly point to a rich fuel condition or incomplete combustion. White or pale insulator glaze can indicate overheating. Light, dry deposits may be harmless or indicate a need for a tune-up. By recognizing the deposit type, you can infer potential root causes such as worn rings, leaky valves, or misfiring due to coil issues. In any case, a careful inspection plus a review of operating symptoms will help you decide whether cleaning or replacement is warranted.

Signs Your Plug Is Failing on the Road

A plug that is failing will often cause rough running, misfires, and difficulty starting. You may notice a drop in fuel economy, rough idle, or hesitation under load. In modern engines, a misfire may trigger the check engine light. If you experience any of these symptoms, inspect the plug and nearby ignition components promptly. A plug replacement is a straightforward fix that can restore ignition timing and engine performance when fouling or wear is present. If misfires persist after replacement, investigate other ignition or fuel system components.

Reinstalling, Torquing, and Safe Startup

When you reinstall a spark plug, start by hand-tightening to avoid cross-threading, then use a torque wrench to reach the manufacturer’s recommended torque. Over-tightening can damage the threads and the porcelin insulator, while under-tightening may allow the plug to back out or leak. Reconnect the ignition coil or wires securely and ensure the boot is seated properly. If you’re replacing the plug, use the same heat range and type as specified for your engine. After installation, start the engine and listen for a smooth run; if there are any unusual noises or misfires, turn off the engine and re-check the connections and gapping.

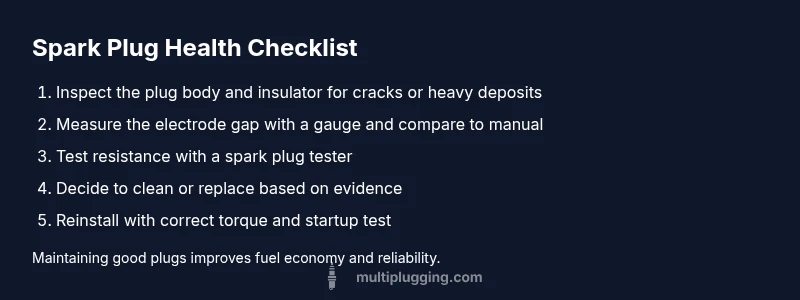

Quick Reference: A Practical 7-Step Check

1. Park on a level surface and cool the engine. 2) Locate plugs and disconnect ignition wiring. 3) Remove the plug with the correct socket. 4) Visually inspect for wear and deposits. 5) Check the gap with a feeler gauge. 6) Optional: test resistance or spark with a tester. 7) Decide to clean or replace and reinstall correctly.
