Oil in Spark Plug Hole: A Comprehensive DIY Fix Guide
Learn to safely remove oil from a spark plug hole, diagnose the oil source, and repair with a clear, step-by-step plan. Includes tools, safety tips, and prevention strategies from MultiPlugging.
To remove oil from a spark plug hole, first identify if oil is coating the plug well or draining into the cylinder; use a non-flammable solvent and compressed air to clear residue, and replace the plug if fouled. If oil persists, address the oil leak (PCV, valve cover gasket, or piston rings) to prevent recurrence.
What oil in the spark plug hole really means
Oil found in the spark plug well is more than a messy spill. It indicates that oil is reaching the combustion chamber area or the plug well, which can foul the plug, cause misfires, and leave you stranded if you drive with it. The typical culprits are the crankcase ventilation system (PCV), a worn valve cover gasket, or worn piston rings that let oil slip past. In high-mileage engines, valve seals can also degrade, allowing oil to travel down the valve stem and into the plug well. Sometimes a temporary overfill or a spill during a recent oil change may leave a residue, but repeated oil in the plug well almost always points to a persistent source that should be addressed. Understanding the source is essential because treating the symptom (clearing the hole) won’t prevent repeat fouling if the underlying leak remains unaddressed. Next, we’ll look at how to diagnose the source and plan a safe repair.
Immediate safety and preparation steps
Before you touch the engine, ensure you’re working safely and protecting yourself and your vehicle. Park on a level surface, set the parking brake, and let the engine cool completely to avoid burns. Disconnect the negative terminal of the battery to prevent accidental shorts while you work near the ignition system. Gather your tools and materials so you can work efficiently without leaving the job mid-step. If your engine uses individual coil packs, identify the correct coil for the fouled cylinder to avoid confusion later. Finally, review the service manual for torque specs and any model-specific precautions. With safety in mind, you’re ready to start diagnosing and clearing the oil in the plug hole.
Diagnostic approach: source identification
Start by inspecting the spark plug itself once removed (we’ll cover removal in the Step-by-Step). Oil-fouled plugs are usually dark and oily, sometimes with a glossy sheen. If the oil is primarily present on the outside of the plug along the threads, this points to a leak around the plug well or the valve cover gasket. If oil appears inside the hole around the electrode, the oil is likely entering from the PCV system or worn piston rings. Check the PCV valve and its hoses for cracks or clogs; a stuck PCV valve can pressurize the crankcase and force oil into the plug well. If feasible, perform a quick compression test or a wet/dry compression check to gauge ring health. Document findings for a future repair plan, especially if multiple cylinders show similar signs.
Cleaning technique: clearing the oil from the plug hole without causing damage
Carefully remove the spark plug and inspect the plug for fouling. Use a dry rag to wipe the exposed area, then use compressed air to blow out oil from the threads and the bore. If you must use solvent, choose a non-flammable cleaner and apply lightly, keeping it away from electrical components. Do not force solvent into the cylinder or on top of the piston—allow the solvent to evaporate in the well. Reinspect the hole and the plug threads after cleaning. If the threads are damaged or the plug is deeply fouled you should replace the plug rather than reuse it. Reinstall the plug finger-tight, then torque to the manufacturer’s specification using a torque wrench. Finally, reattach the coil pack or ignition wire and secure all connections.
When to replace the spark plug and related components
Oil fouling can permanently damage a spark plug, reducing its ability to ignite fuel. If the plug shows signs of heavy fouling, cracking, or electrode wear, replace it. Replacing only the plug without addressing the oil source may lead to quick fouling again. Also inspect the spark plug well for oil residue after reinstall; persistent oil suggests a leak in the valve cover gasket or a failing PCV gasket that will require replacement. Depending on engine design, you may need to replace the valve cover gasket, PCV valve, or associated hoses to stop the oil from entering the plug well. After replacement, test the engine for misfires and monitor oil consumption over the next few drive cycles.
PCV system and valve cover gasket basics
Many oil-fouling cases originate from a flawed PCV system or a deteriorating valve cover gasket. The PCV valve controls crankcase pressure and routes blow-by gases back into the intake. When it fails, pressure increases and oil can be drawn into the spark plug hole. Check the PCV valve for sticking or blockage and inspect hoses for cracks, soot, or oil residue. A worn valve cover gasket allows oil to seep into the plug well around the spark plug. Replacing the PCV valve and the gasket is often straightforward and effective, but consult your service manual for the correct reform and torque specifications. Regular PCV maintenance can prevent future fouling and help the engine run smoothly.
Reassembly, testing, and initial road test
With the plug and system components in place, reconnect everything securely and perform a careful engine start. Listen for misfire or rough idle, and observe exhaust for unusual smells or smoke. A quick warm-up plus a short drive can reveal whether oil is still entering the plug well. If oil returns, recheck for leaks and verify PCV function. Document any abnormal readings and plan a follow-up inspection. If you’re unsure, seek professional help sooner rather than later to prevent potential engine damage.
Preventive maintenance to reduce recurrence
Establish a routine inspection of the PCV system and valve cover gaskets as part of your regular maintenance. Use high-quality oil and the correct viscosity to minimize blow-by. Ensure the oil level is checked regularly and avoid overfilling. Replace spark plugs at the manufacturer’s recommended interval and inspect plug wells for signs of oil during routine maintenance. Keep the area around the valve cover clean to help spot leaks early and schedule timely PCV valve replacements.
Common mistakes to avoid
Do not ignore persistent oil in the plug well; it will likely lead to misfires and reduced engine efficiency. Avoid using aggressive solvents or forcing tools into tight spaces, which can damage the cylinder head or plug threads. Do not reuse a fouled spark plug without cleaning and testing. Avoid driving long distances with oil in the plug hole; it can cause improper ignition and potential engine damage. Finally, never remove the oil leak source without validating safe replacement parts and torque specs.
Next steps if oil keeps returning
If oil continues to appear after cleaning and replacement, it’s time to escalate. Arrange a diagnostic with a professional mechanic who can perform a smoke test, compression tests, or leak-down tests to pinpoint the leak source. In some cases, the issue is a failing engine component like piston rings or valve guides that require more involved repair. Consider documenting all maintenance performed so you can track progression and plan future service.
Tools & Materials
- Spark plug socket with 3/8 inch drive(For removing the spark plug)
- Ratchet wrench and extension(Leverage and reach)
- Torque wrench(To proper torque specs)
- New spark plug(s) per vehicle spec(Correct heat range and gap)
- Compressed air can or compressor(Clear debris from plug well)
- Non-flammable solvent (e.g., brake cleaner)(Lightly to wipe and evaporate)
- Lint-free rags(Wipe and clean surfaces)
- Safety glasses and gloves(Personal protection)
- Oil catch pan(Contain used oil)
- Anti-seize compound (optional)(On plug threads if permitted)
- PCV valve and valve cover gasket (replacement parts)(Use if diagnosing a leak)

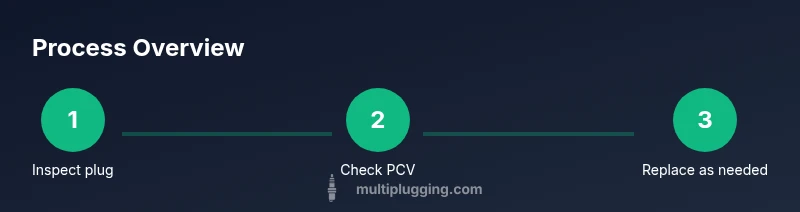

Steps
Estimated time: 60-90 minutes
- 1
Power down and prep
Park the car on a level surface and let the engine cool. Disconnect the negative battery terminal to guard against short circuits while working near ignition components. Identify the fouled cylinder and coil pack to avoid confusion later.
Tip: Keep track of the exact cylinder you’re working on. - 2
Disconnect ignition from fouled cylinder
Carefully unplug the ignition coil or coil-on-plug boot from the cylinder. If needed, detach any connector harnesses and label wires so you can reassemble correctly.
Tip: If reusing parts, take a photo of connections before removal. - 3
Remove the spark plug
Attach the spark plug socket to the ratchet, place it over the plug, and turn counterclockwise to loosen. Lift straight out to avoid thread damage. Observe the plug for fouling color and deposits.
Tip: Never force the plug—cross-threading damages the head. - 4
Inspect the plug and hole
Examine electrode wear, gap, and overall fouling. Look for oil residue on threads or inside the plug well. Photograph the plug for future reference and record observations.
Tip: Oil on threads usually indicates a leak around the plug well. - 5
Clean the well and plug threads
Blow out the bore and threads with compressed air. Wipe with a dry rag and lightly dab solvent if needed, ensuring solvent fully evaporates before reinstall. Do not spray solvent into the cylinder.
Tip: Keep solvents away from ignition components. - 6
Decide plug replacement vs cleaning
If the plug is heavily fouled or damaged, replace it. If it’s only lightly fouled and the electrode gap remains correct, you may reuse after cleaning and gap check.
Tip: Always check the current gap spec before reusing a plug. - 7
Reinstall the plug and torque
Install the plug by hand to avoid cross-threading, then torque to the manufacturer’s specification with a torque wrench. Reconnect the ignition coil/boot securely.
Tip: Over-tightening can damage the thread or plug seat. - 8
Reconnect and test
Reconnect all components, reconnect the battery, and start the engine. Listen for misfires and monitor for any oil leaks around the plug well during a brief drive.
Tip: If misfires appear, recheck connections and plug seating.
FAQ
Can oil in the spark plug hole cause engine damage?
Yes. Oil in the plug hole can cause misfires and reduced engine performance; persistent oil indicates a leak that should be repaired.
Oil in the plug hole can cause misfires and performance issues, and persistent oil means you should fix the leak.
What are the common causes of oil entering the plug hole?
Typical culprits include a failing PCV system, a deteriorating valve cover gasket, or worn piston rings. Other seals or oil-cap issues can contribute.
Most often it's the PCV system, valve cover gasket, or worn rings.
Should I drive the car if I find oil in the plug hole?
Limit driving and have the issue diagnosed. Extended driving with oil in the plug hole can lead to engine damage.
Don’t drive far; get it checked to avoid engine damage.
Do I always need to replace the spark plug when oil is present?
Not always. Inspect the plug for heavy fouling or damage; replace if necessary and if the oil source is not resolved, plan for a follow-up repair.
Replace if fouled or damaged; otherwise clean and test.
How can I prevent oil from entering the plug hole in the future?
Maintain the PCV system, check valve cover gaskets, and avoid overfilling oil. Regular maintenance helps prevent recurrence.
Keep the PCV system healthy and inspect gaskets regularly.
Is it safe to use penetrating oil to free a stuck spark plug?
Avoid using penetrating oil inside the plug well; it can leave residues that hinder ignition. Use recommended cleaners and proper technique.
Be cautious with penetrants in the plug well; use approved cleaners.
Watch Video
Main Points
- Identify the oil source before repair
- Clean and inspect the plug and well carefully
- Replace worn plugs and faulty components
- Address the root cause to prevent recurrence
