Aircraft Spark Plug Tester: A Practical Guide for Aviation Enthusiasts and Professionals
Learn how to use an aircraft spark plug tester to diagnose ignition faults, verify spark health, and ensure safe engine operation. This practical, step-by-step guide covers selection, setup, testing, interpretation, and maintenance for DIYers and professionals alike.
An aircraft spark plug tester is a bench device that lets you recreate ignition conditions and verify the health of aviation plugs without running an engine. It helps identify fouling, worn electrodes, and improper gaps, reducing misfires and engine wear. You’ll learn how to select a tester, set safe parameters, perform a bench test, and interpret results for maintenance decisions.
What is an aircraft spark plug tester and why it matters
An aircraft spark plug tester is a purpose-built instrument that lets you replicate ignition conditions for aviation plugs on a bench. For pilots and maintenance technicians, it offers a safe, controlled way to evaluate plug health without a running engine. The aircraft spark plug tester helps identify fouling, worn electrodes, and improper gaps long before a flight, reducing misfires and engine wear. According to MultiPlugging, regular bench testing complements in-field checks and engine-level diagnostics by isolating the plug as a variable, which is especially important in high-altitude operations where a single faulty plug may have outsized consequences.
A typical tester exposes the plug to a high-voltage pulse and simulates the air/fuel environment of a combustion event. You’ll see readings for spark duration, voltage needed to fire, and resistance at the gap, all of which indicate whether the plug can produce a reliable spark under operating conditions. For aircraft spark plug tester use, you should recognize that aviation plugs often have different heat ranges, premium alloy electrodes, and precise gap specs compared to automotive plugs—so the tester must accommodate these differences. In practice, using an aircraft spark plug tester helps technicians document conditions, compare against reference readings from service bulletins, and maintain a built-in record for regulatory compliance.
note():null
Tools & Materials
- Aircraft spark plug tester(Choose a tester compatible with aviation grades and able to simulate high-energy ignition conditions.)
- Digital multimeter with millivolt/milliamp ranges(Used to cross-check signals and resistance readings alongside the tester.)
- Spark plug gap gauge(Verify exact electrode gap before testing.)
- Non-conductive test leads(Prevent stray paths and ensure safe, clean measurements.)
- Personal protective equipment (gloves, eye protection)(Provide basic safety during bench testing.)
- Aircraft engine service manual or plug reference data(Serve as a reference for heat range and gap specs.)
- Anti-seize or dielectric grease (optional)(Optional lubrication/insulation for smoother testing)

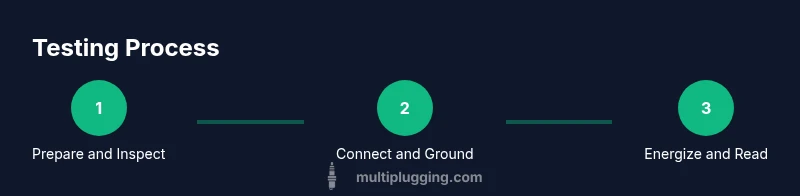

Steps
Estimated time: 90 minutes
- 1
Prepare the tester and plug
Power off all equipment and inspect the tester for damage. Mount the aviation spark plug in the test fixture, ensuring the plug is clean and free of oil or fuel residues. Confirm voltage range and safety interlocks are set to the manufacturer’s recommended limits.
Tip: Always start with a known-good plug in a safe bench setup to verify the tester is functioning correctly. - 2
Check the plug gap and condition
Use the gap gauge to verify the spec for the aircraft plug. Record any deviation before test so you can correlate readings with the proper gap. Clean the plug threads if needed and apply a light dielectric grease if recommended by the service data.
Tip: A small gap deviation can dramatically affect spark readings on high-energy aviation plugs. - 3
Connect the tester and establish ground
Connect the plug to the tester using non-conductive leads. Ensure the test bench ground is solid and separated from any live AC lines. Double-check all connections before energizing.
Tip: A floating ground can produce misleading readings or arc leaks. - 4
Set baseline parameters
Configure the tester to match the engine’s expected ignition energy and estimated operating conditions. Use a conservative starting point and plan to increase or adjust within safe limits. Note the target readings you expect for healthy plugs.
Tip: Document the baseline so future tests can be compared objectively. - 5
Initiate the spark test
Trigger the high-energy spark pulse and observe the plug’s behavior on the tester. Note the spike duration, peak voltage, and any irregularities in the arc path. Avoid prolonged energizing that could overheat the plug.
Tip: Keep hands and tools clear of the test area during energization. - 6
Record readings and compare
Record the measured values and compare them with reference data from the aircraft service bulletin or manufacturer. Look for consistent spark, stable gap readings, and absence of misfires.
Tip: Consistency across multiple cycles strengthens reliability of the result. - 7
Isolate and re-test as needed
If readings are abnormal, re-test after cleaning or adjusting the plug. If issues persist, document conditions and consider replacing the plug or inspecting related ignition components. Do not replace parts without confirming the fault source.
Tip: Avoid rushing to replacement—verify the diagnosis with repeatable results. - 8
Capture results and close the test
Log the final readings, any adjustments made, and the test date. Store the data with the engine serial and plug type for traceability and regulatory compliance.
Tip: A well-documented test trail helps audits and ongoing maintenance.
FAQ
What is an aircraft spark plug tester and why use one?
An aircraft spark plug tester simulates ignition conditions for aviation plugs on a bench, allowing you to assess spark quality, gap, and electrode wear without running an engine. This helps catch problems early and supports maintenance records.
An aircraft spark plug tester simulates ignition on a bench so you can check spark quality and plug condition without starting an engine.
Can I test aviation plugs on a bench or only in an engine?
Bench testing with an aircraft spark plug tester is a safe, controlled method to evaluate plug health. It cannot fully replace engine testing but is a critical pre-check for maintenance decisions.
Bench testing is a safe, controlled way to check plug health before engine testing.
What safety precautions should I take when testing?
Always power down before connecting or disconnecting equipment, use proper PPE, avoid testing near fuels, and follow manufacturer interlocks and local regulations. Label and store test data securely.
Wear PPE, keep the area clear of fuel, and follow the tester's safety interlocks.
How do I interpret tester results for an aircraft spark plug?
Interpret readings in the context of the plug’s heat range, gap spec, and service bulletin references. Look for consistent arc and current levels across multiple tests, and watch for inconsistent results that indicate fouling or wear.
Compare the readings to the plug's specifications and service data; repeat tests if results vary.
Are there calibration requirements for testers?
Calibration should follow the tester manufacturer’s schedule and be aligned with aviation service data. Use a known reference plug for periodic checks and document calibration dates.
Calibrate per the manufacturer’s schedule and document when you checked with a reference plug.
Watch Video
Main Points
- Test bench setup is safer and quicker than engine-side checks.
- Always verify plug gap before testing to avoid misleading results.
- Document readings and compare to service data for accurate diagnosis.
- Follow safety interlocks and use proper ground to prevent shocks or sparks.
- Maintain a test log for maintenance history and regulatory compliance.
