Where Are Spark Plugs Located in a Car: A Practical Guide
Learn where spark plugs live in most cars, how access varies by engine layout, and practical steps to locate and inspect them. A clear, data-driven guide for DIY enthusiasts.
Spark plugs live in the engine cylinder head area, with the number matching the engine (4, 6, or 8). In most four-cylinder cars you’ll find four plugs in a row along the top of the engine; V6 and V8 engines use two banks for six or eight plugs. Access is usually from the engine bay, but some designs require removing intake components or coil packs.
Where spark plugs are located in a car
If you’re wondering where are spark plugs located in a car, the short answer is that they live in the engine block where each cylinder has its own plug. In most modern gasoline cars, plugs sit in the cylinder head and are paired with ignition coils or coil packs. The exact arrangement depends on engine design (inline, V, or boxer), but the core principle is the same: one plug per cylinder that ignites the air-fuel mixture. For four-cylinder engines, you typically see four plugs in a row along the top or side of the head. In V-shaped engines, the plugs are split between two banks. Understanding this layout is essential for planning maintenance and ordering the right parts.
Engine layouts and plug placement

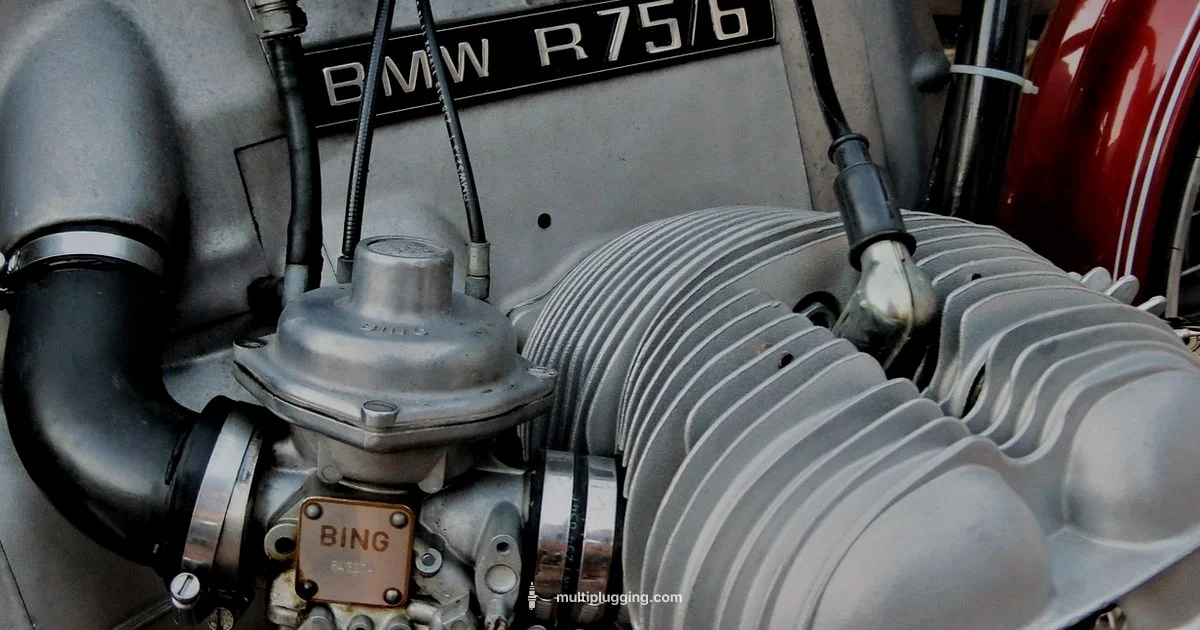

Engine layout drives plug placement. Inline-4 engines typically place all plugs on one side of the head for straightforward access. Inline-6 engines often align plugs in a single line along the cylinder head. V-shaped engines (V6, V8, or V12) split plugs across two banks, which can influence the space between components and how you approach replacement. Boxer engines (horizontally opposed) have plugs positioned for even access across both sides. Knowing your engine type helps you anticipate where to look and what tools you’ll need to reach the plugs without stripping components.
Access patterns by design: top vs side access
Top-access designs let you reach plugs from above the engine bay, which is common in many modern vehicles. Some configurations put plugs deeper behind the intake manifold or under coil packs, valve covers, or turbo plumbing, especially on turbocharged or high-performance engines. In those cases, you may need to remove air intake scoops, throttle bodies, or even portions of the fuel rail to expose the plugs. Always consult the service manual for your specific model to confirm the required disassembly steps and torque specs.
Diagnosing and locating plugs during maintenance
Locating plugs begins with identifying the engine’s layout and the cylinder count. The service manual or a reputable repair guide will map each cylinder to its corresponding plug. When diagnosing ignition issues, a misfire on a particular cylinder may point you toward that plug’s location. If your vehicle uses coil-on-plug ignition, each cylinder’s coil pack sits directly above its plug, simplifying identification but potentially hardening access if components are crowded. In contrast, distributor-based systems route spark through a central distributor cap, which still leads to individual plugs but with different routing.
Tools and safety steps for locating plugs
Before you begin, ensure the engine is cool and the battery is disconnected. You’ll typically need a spark plug socket, a ratchet wrench, an extension bar, and a torque wrench for reinstallation. For access-heavy layouts, a mirror, magnetized retrieval tool, and a flashlight help. Safety steps include wearing eye protection, securing loose clothing, and keeping track of removed parts. A clear work area and an organizer for plugs (labeled by cylinder) reduce confusion, especially on V-engine banks where plugs look similar but belong to different cylinders.
Common myths about plug location and service
A common myth is that spark plugs are always easy to access. In practice, many modern engines place plugs behind intake manifolds or under tight wiring looms, requiring partial disassembly. Another misconception is that you can always replace plugs without tools or that coil packs don’t influence plug accessibility. In reality, the choice of tools, the engine layout, and the amount of space around the spark plug sleeves determine your replacement approach and speed.
Practical DIY tips: locating plugs quickly and safely
Start by identifying your engine type and counting cylinders. Use the vehicle’s service manual to locate each plug with a diagram. When removing components, do so in a systematic order to avoid misplacing parts. Label wires or hoses as you detach them, and double-check the gap and torque specifications before finishing. If you’re unsure about a tight space, consult a professional or a trusted guide before forcing a tool into a crowded area. This careful approach protects both you and your engine.

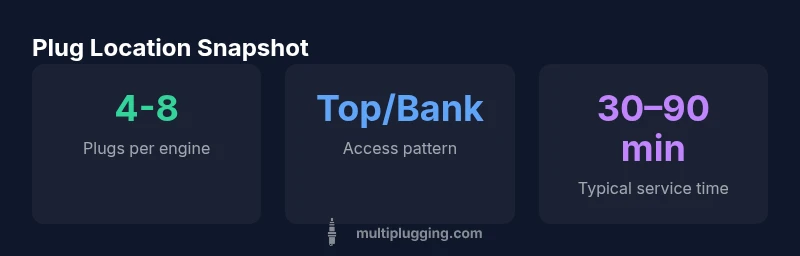

Typical engine layouts and plug counts
| Engine Type | Spark Plugs | Access Difficulty |
|---|---|---|
| 4-cylinder petrol | 4 | Moderate |
| V6 petrol | 6 | Moderate to Difficult |
| V8 petrol | 8 | Difficult |
| Inline-6 diesel | 6 | Moderate |
FAQ
Where are spark plugs located in a four-cylinder engine?
In most four-cylinder engines, spark plugs sit in a single cylinder head, usually in a straight line along the top or side of the head. Access varies by year and model, but this is the most common arrangement.
In a four-cylinder engine, the plugs are in one row along the head; access is usually straightforward, but some models may need a few components removed.
Do spark plugs always sit on the top of the engine?
Not always. Many modern engines offer top-side access, while others hide plugs behind intake components or under coil packs. Always check the service manual for the exact access path for your model.
Sometimes plugs are on top, sometimes they’re tucked behind other parts; check your manual for the exact layout.
Are coil-on-plug systems easier to service for plug location?
Coil-on-plug setups can simplify pinpointing which plug corresponds to which coil, but they may not always improve physical accessibility if the coils sit in crowded spaces.
Coil-on-plug helps you identify which plug to service, but it doesn’t always mean easier physical access.
Do diesel engines use spark plugs?
Diesel engines use glow plugs for startup rather than spark plugs. The locations can differ, and some older diesels may still use traditional glow plugs in specific configurations.
Diesels don’t use spark plugs; they use glow plugs for starting.
What safety steps should I take when locating plugs?
Always let the engine cool, disconnect the battery, use proper tools, and work in a well-lit area. Label removed parts and keep track of cylinder positions to avoid mistakes during reassembly.
Cool engine, disconnect battery, use the right tools, and label parts as you go.
“Understanding exact plug location empowers DIYers to plan maintenance efficiently and avoid unnecessary component damage.”
