NGK CMR5H Spark Plug Guide: Specs, Fit, and Tips for DIYers

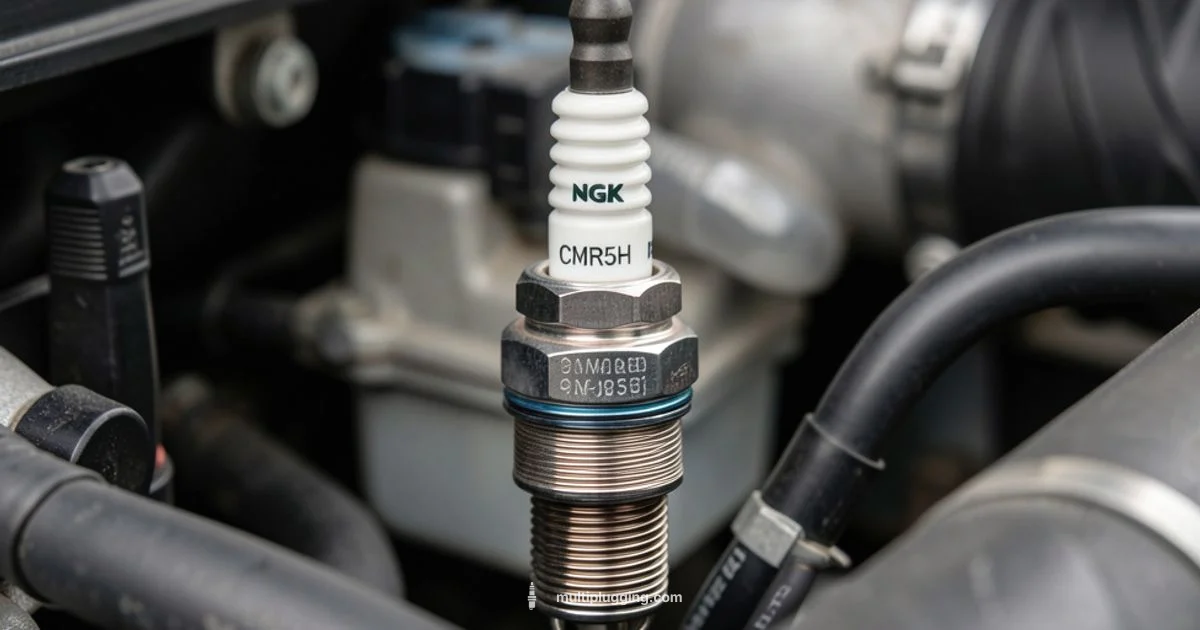

What is the ngk cmr5h spark plug

The ngk cmr5h spark plug is a member of NGK's CM R series, a lineup known for copper-core construction and reliable heat management. While NGK offers many spark plug configurations, the cmr5h designation identifies a specific model within the CM R family that has been used in a range of gasoline engines. For DIYers, recognizing the cmr5h involves matching the part number, the hex size, and the overall appearance of the plug to the fixture in your engine bay. Always cross reference the vehicle's owner manual or service guide to confirm that cmr5h is appropriate for your engine and operating conditions. This is especially important for engines that require precise heat range and electrode geometry to maintain optimal combustion and emission performance.

• Key identifiers to look for include the cmr5h stamping on the plug body and the characteristic connector style used by NGK for this series.
• If you cannot locate the exact part number, bring the old plug to the parts counter and compare the shape, thread size, and heat range markings.
• When in doubt, consult the NGK official catalog or trusted automotive manuals to avoid misidentification and potential engine damage.

For many DIY enthusiasts, the ngk cmr5h spark plug represents a familiar entry point into spark plug maintenance because it sits in a recognizable family with common mounting threads and gapping methods. However, exact fitment depends on your engine, so never assume compatibility without verification.

How to identify a ngk cmr5h spark plug

Identifying a ngk cmr5h spark plug begins with reading the part number and inspecting the plug for specific markings. The cmr5h designation should appear on the ceramic insulator or the metal shell. Cross-check this number with NGK’s official catalogs or your engine’s service guide to ensure it matches the intended model. Additionally, compare the plug’s thread size, hex diameter, and overall length with your existing plug. If your vehicle or equipment manual specifies a particular NGK part number, choose cmr5h only if it is listed as compatible. Photographs can help, but rely on official documentation for definitive confirmation. If you’re unsure, remove the old plug and compare all dimensions and markings side by side.

• Confirm the thread size and seat type match the cylinder head.
• Look for factory markings that indicate heat range and electrode configuration.
• Verify compatibility with the engine’s timing and ignition system to avoid performance issues.

This approach reduces the risk of installing an incompatible spark plug that could lead to misfires, poor fuel economy, or damage to the ignition coil. Always aim for verification rather than assumption when identifying ngk cmr5h plugs.

Compatibility and fitment considerations

Compatibility for the ngk cmr5h spark plug depends on engine design, combustion chamber geometry, and the manufacturer’s specifications. Engines with similar cylinder pressures and fuel delivery characteristics often tolerate cmr5h plugs, but it is essential to verify with the vehicle’s manual or a trusted parts catalog. If your engine came with a specific NGK part number, replacing it with cmr5h should only be considered if the manufacturer or a reputable guide explicitly lists cmr5h as a substitute. In some cases, small engines and lawn equipment may use different plug types than automotive engines, so always check the correct range for your application. When shopping for parts, bring the old plug or the vehicle’s information so a parts advisor can confirm fitment quickly. If you notice a persistent misfire after replacement, recheck the gap, torque, and sealing, as incorrect installation often masquerades as a compatibility issue.

• Always verify the exact part number in the official NGK catalog.
• Check thread size, reach, and seating depth for your engine.
• Do not force a plug into threads; misalignment can damage the cylinder head or gasket.

Understanding fitment helps prevent common problems and keeps an engine running smoothly while preserving ignition system longevity.

Installation and gapping tips

Installation of the ngk cmr5h spark plug should follow standard anti-seize and torque practices if recommended by NGK or the engine manufacturer. Begin by ensuring the engine is cool and the spark plug well is clean. Remove the old plug carefully, taking care not to drop debris into the cylinder. Clean the threads and inspect the seal surface. When gapping, use the manufacturer’s specified gap range and a calibrated feeler gauge; adopt the same gap if the engine requires a default setting across several plugs. Install the new plug by hand to avoid cross-threading, then tighten to the recommended torque using a torque wrench. Reconnect the ignition coil or spark plug boot, and verify there are no arcing signs or loose connections. Finally, test the engine to confirm smooth idle and acceleration.

• Use proper gloves and tools to avoid damaging the plug’s ceramic insulator.
• If using anti-seize compounds, apply sparingly as directed by the manufacturer.
• After installation, perform a quick spark test if you have access to a spark plug tester.

Following these steps helps ensure consistent performance and reduces the likelihood of premature wear. Always refer to the engine’s service manual for exact torque values and gap recommendations.

Maintenance and replacement intervals

Maintenance of the ngk cmr5h spark plug centers on timely inspection and clean replacement when signs of wear or fouling appear. While official replacement intervals vary by engine and operating conditions, common indicators of a faulty plug include reduced engine performance, rough idling, misfires, and increased fuel consumption. Regular visual inspections for corrosion, carbon buildup, or glaze on the electrodes can help you decide when to replace. For many DIYers, performing a routine plug check during scheduled maintenance is a practical approach to minimize unexpected breakdowns. Always store spare plugs in a clean, dry container to avoid contamination that can compromise performance. If you’re replacing with a different NGK model due to a specific engine update, ensure the new plug matches the required heat range and reach.

• Inspect plugs for fouling or wear during every maintenance interval.
• Replace when deposits, gaps, or damage are evident.
• Keep a log of replacements to inform future service decisions.

This ongoing practice helps sustain engine efficiency and reduces the risk of ignition-related issues. Remember that gap and torque must align with engine specifications for optimal results.

Troubleshooting common issues when using ngk cmr5h spark plug

If you suspect the ngk cmr5h spark plug is causing problems, start by checking for common symptoms of wear or misfire. Signs such as rough idle, hesitation during acceleration, or poor fuel economy can indicate a worn or fouled plug. Inspect the plug for carbon buildup, oil fouling, or glazing on the electrode. Verify the gap and re-gap if necessary, ensuring it aligns with the engine’s specification. If misfires persist after replacement, examine related components: ignition coils, wires, and the ignition control module. In some cases, misfires are caused by wiring or coil issues rather than the plug itself. When diagnosing, test the plug’s resistance if you have the right equipment and compare results to the manufacturer’s tolerance. Always ensure proper installation torque and a clean sealing surface to prevent air leaks.

• Misfires can stem from ignition coil or wire issues as well as the plug.
• Re-check all connections after replacement to avoid loose or damaged circuits.
• Use the correct gapping tools and torque values to ensure a proper seal and performance.

Addressing these concerns systematically helps identify root causes efficiently and avoids unnecessary part replacements.

Common mistakes and best practices

DIYers often make a few avoidable mistakes when working with ngk cmr5h spark plugs. Common pitfalls include neglecting to check the exact part number for compatibility, using an improper gap, and over-tightening the plug during installation. Best practices include verifying fit with the engine’s manual, using the correct torque, and performing a gap check with a calibrated gauge. It is also important to clean the plug wells and threads before installation to prevent debris from entering the combustion chamber. A lightweight coating of anti-seize is sometimes recommended, but follow the manufacturer’s guidance because some engines do not require it. By adhering to these guidelines, you can improve ignition reliability, fuel economy, and overall engine performance while extending the life of the plug and related components.
