Spark Plug Without Tip Troubleshooting: Quick Fixes
Urgent guide to diagnose and fix a spark plug without tip. Learn step-by-step checks, safe replacement, and prevention techniques for DIY car care.
The most likely cause of a spark plug without tip is tip breakage or removal due to overheating, preignition, or improper installation. Start by inspecting the plug in the cylinder, check the boot and seal, and replace the plug if the tip is missing. If you find metal debris, stop and diagnose further.
What does a spark plug without tip mean?
A spark plug without tip signals a severe fault inside the combustion chamber. According to MultiPlugging, this situation is not normal wear and should be treated as an urgent diagnostic cue. The tip, or electrode, is essential for initiating the spark that ignites the air-fuel mixture. When the tip is missing, the plug cannot fire reliably, and metal debris may have entered the cylinder. This condition often results from overheating, preignition, or improper installation that stressed the electrode assembly. If you physically inspect the plug and find the tip absent, stop further attempts to reuse it and plan an immediate replacement and a check of related components. In the rest of this guide, we’ll walk through safe checks, how to verify if other parts are affected, and a repeatable workflow you can follow on any car model.
Why the tip matters
The tip is the portion of the plug that creates the actual spark. Its shape, gap, and integrity determine ignition timing and flame propagation. A missing tip means the plug cannot consistently ignite the air-fuel mixture, increasing misfire risk, reducing power, and possibly damaging the ignition coil or wiring due to arcing elsewhere. The ceramic insulator also helps seal combustion pressure; if the tip is gone, combustion chamber integrity can be compromised. Understanding this helps you prioritize a replacement and a quick system check rather than chasing unrelated faults.
Symptoms and visual cues to look for
Look for obvious signs of damage on the plug: melted electrode material, a chipped ceramic insulator, or shiny debris around the plug seat. Engine symptoms may include rough idle, misfire codes, a drop in fuel economy, stumbling under load, or difficulty starting. If you remove the affected plug and see the tip missing or obvious wear on the electrode, treat this as a high-priority issue. Also check nearby cylinders for similar wear — a knocked-out tip can sometimes leave fragments in the cylinder that erode piston rings or cause scoring.
Early, safe checks you can perform
Before you touch anything, ensure the engine is cool and the battery is disconnected if you’ll be handling wiring. Wear eye protection and gloves. Inspect the spark plug boot for cracks, soot, or oil seepage. Confirm the plug gap with a feeler gauge if the tip remains but looks unusual, and verify that the correct heat range and thread size are used for your engine. Do not attempt to reuse a plug that shows tip damage; the risk of misfire and further engine damage is too high. If you’re unsure, stop and consult the diagnostic flow described later in this guide.
Diagnostic flow: turning the symptom into a diagnosis
(Internal reference: Diagnostic flow is summarized below, with steps you can take in sequence. See the dedicated diagnosticFlow block for structured data.) A missing tip is a strong cue that the plug has failed mechanically rather than just fouled. Cross-check the ignition coil, plug boot, and wiring for heat damage or arcing. If compression tests are normal, the issue is most likely the plug itself or its immediate circuit. If compression is low, there may be a deeper engine problem. In all cases, replacement of the plug is recommended when the tip is missing, and related components should be inspected.
Replacements and parts considerations
Choose a plug that matches your engine’s manufacturer specification, including the correct heat range, thread size, and reaching length. When replacing a damaged plug, always gap the new plug to the recommended value for your engine and torque it to spec. If you see oil or fuel fouling, address root causes such as valve seals, piston rings, or injector performance before reassembly. After replacement, recheck ignition components (coils and wires) for heat or arc damage. Ensure the spark plug is seated properly and the boot is firmly attached to prevent misfires.
Steps
Estimated time: 45-60 minutes
- 1
Power down and prep tools
Ensure the vehicle is off, cooled, and that you have the correct tools: a spark plug socket, gauge, torque wrench, and replacement plugs. Gather PPE like gloves and safety glasses. Disconnect the battery if you’ll be handling sensitive electronics.
Tip: Lay out tools in a logical order to avoid scrambling mid-task. - 2
Locate the affected plug
Identify the cylinder with the suspect plug. A factory service manual or cylinder labeling helps. Label or photograph other plugs to ensure proper reassembly.
Tip: Double-check you’re working on the correct cylinder. - 3
Remove boot and wire
Carefully wiggle the boot to detach the wire from the plug. Do not yank; twisting helps prevent wire damage. If the boot is tight, use a small tool to gently ease it off.
Tip: Inspect the boot for cracks or oil signs while removed. - 4
Inspect the plug
Take the plug out and visually inspect for tip presence, electrode wear, and ceramic cracks. If the tip is missing, set the plug aside as a failed part and start with a new one.
Tip: Note the gap size; do not reuse a damaged plug. - 5
Install a new plug
Gently thread the new plug by hand to avoid cross-threading, then snug with the socket. Use a torque wrench to reach the manufacturer’s specification. Gap the plug before installation if required by your model.
Tip: Do not over-tighten; overtightening can damage the cylinder head. - 6
Reattach boot and wiring
Reconnect the ignition boot, ensuring full seating. Clean any contact surfaces and verify there’s no oil or debris that could impair connection.
Tip: If you see oil present, address the source before reassembly. - 7
Check the rest of the system
Visually inspect nearby plugs, wires, and coil packs for heat damage or cracks. Replace any damaged components to prevent misfires in other cylinders.
Tip: Rotate the engine by hand if feasible to check for smooth motion. - 8
Test and verify
Reconnect the battery and start the engine. Listen for smooth idle and verify no misfire codes appear on diagnostics. If the engine continues to misfire, perform a compression test or seek professional help.
Tip: Run the engine until at least one heat cycle is complete.
Diagnosis: Engine misfire or rough idle with a spark plug without tip observed on inspection
Possible Causes
- highTip breakage or removal (damaged plug) due to overheating, preignition, or improper installation
- mediumExcessive oil fouling or carbon buildup unrelated to tip
- lowBare ceramic crack or insulation damage from impact or improper gap
Fixes
- easyReplace the spark plug with a new one matching OEM specs
- easyInspect and replace ignition coil, wires, and boot if scorched or damaged
- mediumCheck cylinder compression and perform a leak-down test to rule out piston ring damage
- easyClean or replace the spark plug well, ensure proper seat and torque, then verify gap
- hardIf compression is low or you see mechanical damage, seek professional service
FAQ
What does it mean if a spark plug tip is missing?
A missing tip usually indicates severe wear or breakage. It requires replacement and an inspection of the cylinder for debris. Do not reuse the damaged plug.
A missing spark plug tip means severe wear or breakage and the plug should be replaced. Check the cylinder for debris and avoid reusing the damaged part.
Can a missing tip cause misfire or engine damage?
Yes. A missing tip can cause misfires, rough running, and potential engine damage if debris damages the piston or valves. Replace the plug and inspect related components.
A missing tip can cause misfires and potential engine damage. Replace the plug and inspect related ignition components.
Is it safe to drive with a damaged spark plug?
Driving with a damaged plug risks further engine damage and should be avoided. If you can, pull over safely and arrange replacement before continuing.
No, you shouldn't drive with a damaged plug. Replace it and have the system checked.
How do I ensure the correct torque when replacing a plug?
Use the recommended torque spec from your vehicle’s service manual and a calibrated torque wrench. Recheck torque after a few heating cycles.
Torque the plug to the manufacturer’s spec with a torque wrench, then recheck after a few heat cycles.
What should I inspect after finding a missing tip?
Inspect the plug seat, cylinder walls, and piston for damage. Check the ignition coil and wires for heat or arcing. Clean or replace as needed.
Check the seat, cylinder, and ignition components for damage and replace as needed.
How can I prevent tip damage in the future?
Use correct heat range plugs, avoid overtighting, and perform regular inspections. Address overheating or preignition causes promptly to protect the plug.
Stick to the right heat range, avoid over-tightening, and fix overheating issues early.
Watch Video

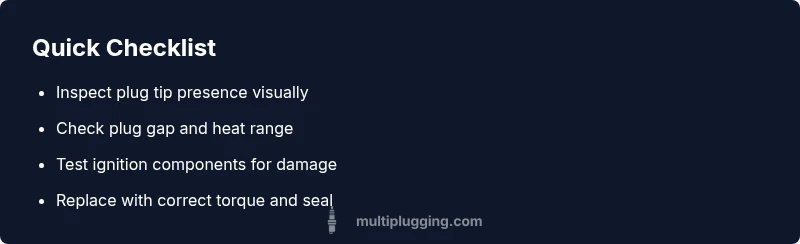

Main Points
- Inspect the plug for tip damage before reuse
- Replace damaged plugs with correct heat range
- Test ignition components after replacement
- Prevent future damage with proper torque and maintenance
