Spark Plug Wear Symptoms: Diagnose and Fix Like a Pro
Identify spark plug wear symptoms, diagnose causes, and perform safe, step-by-step fixes. A practical, urgent guide for DIYers to protect engine performance and efficiency.
Symptoms of worn spark plugs typically include rough idle, misfires, hard starts, reduced power, and lower fuel efficiency. The most likely cause is electrode wear or insulator damage from heat and deposits. Quick fix: check gap, inspect for erosion or fouling, and replace worn plugs with the correct heat range and gap.
What are spark plug wear symptoms?
According to MultiPlugging, recognizing spark plug wear symptoms early can prevent costly engine damage. In most engines, wear shows as persistent misfires, rough idle, hesitation under load, and a drop in fuel economy. These signs point to electrodes that have eroded, gaps that have grown, or insulation that's cracked. Understanding these symptoms helps DIYers decide when to inspect or replace plugs before you risk further damage.
Visual cues: wear on the plug body and electrodes
Visual inspection is your first line of defense. Look for eroded electrodes, widened spark plug gaps, white or brown insulator cracks, excessive carbon buildup, oil fouling, or oily residue around the threads. Any of these indicators can signal wear or mis-sealing. If the plug color looks abnormal (ash-white, black soot, or oily glaze), document it and move to testing.
How wear translates to engine performance
Worn electrodes require a larger voltage to jump the gap, which reduces ignition efficiency. This leads to misfires, rough idle, sluggish acceleration, and higher fuel consumption. You may notice hesitation during towing or hill climbs, and arching may occur under boost. Address wear promptly to maintain smooth running and avoid catalytic converter damage from unburned fuel.
Quick checks to confirm wear (before disassembly)
Start with a visual sweep of accessible plugs, checking for scorch marks and deposits. Use a spark plug gap tool to measure the gap against manufacturer spec. If you see a gap wider than recommended, or if the electrode is visibly worn, plan a replacement. Check ignition wires and coils as well—faulty parts can mimic plug wear.
Wear vs. fouling: what's the difference?
Wear refers to the gradual erosion of the electrode and insulator due to heat, fueling, and combustion byproducts. Fouling happens when oil, fuel, or carbon deposits foul the plug, causing poor ignition even if the electrodes appear intact. Distinguishing between the two helps you choose cleaning vs. replacement.
Replacement guidance and best practices
If wear is evident or the plug is over the typical mileage for your plug type, replacement is recommended. Use the correct heat range and thread size for your engine and set the gap to spec. Consider upgrading to platinum or iridium plugs if your engine benefits from longer life and stronger cold starts. Always gap before installation, and torque to the manufacturer's spec. This aligns with the MultiPlugging team’s recommendations for reliable ignition and overall efficiency.
Safety and maintenance tips for DIY spark plug work
Always disconnect the battery and use insulated tools. Work on a cool engine to avoid burns. Wear eye protection when removing plugs and control debris. Keep old plugs in a labeled container and clean the area around the valve cover to prevent debris from falling into the cylinder head.
Steps
Estimated time: 60-90 minutes
- 1
Gather tools and safety gear
Lay out the tools you’ll need and put on safety glasses. Disconnect the battery to prevent shocks and accidental starts. Label each plug wire to keep cylinder order clear, then locate the spark plugs for your engine.
Tip: Organization reduces mistakes; take a photo of old setup before removing anything. - 2
Cool engine and locate plugs
Allow the engine to cool completely. Remove any engine covers if needed and locate each spark plug boot. Check you have the right socket size and a spark plug gap tool ready.
Tip: Use penetrating oil on stubborn threads after initial wear. - 3
Disconnect and remove plugs one by one
Carefully disconnect the ignition coil or wire. Use the correct socket to unscrew the plug, keeping other components intact. Loosen gradually to avoid cross-threading.
Tip: Never yank on wires; gentle rocking helps. - 4
Inspect plug condition
Examine electrode wear, gap, and deposits. Compare to your engine’s spec sheet. If wear is evident or deposits are heavy, mark the plug as replacement needed.
Tip: Document color and wear with a quick photo for future reference. - 5
Decide on cleaning vs. replacement
If electrodes are visibly worn or the gap is out of spec, replacement is the safer route. Light fouling can be cleaned, but never reuse severely worn plugs.
Tip: In doubt, replace rather than risk misfires. - 6
Install new plugs and gap to spec
Thread plugs by hand to avoid cross-threading, then torque to the manufacturer’s spec. Reconnect wires or coils in the correct order.
Tip: Always re-check gap before final torque. - 7
Reassemble and test run
Reconnect the battery, start the engine, and listen for smooth operation. Take a short test drive to confirm there are no misfires or rough spots.
Tip: If misfires persist, check for ignition coil or wire faults. - 8
Document results and monitor
Note the service date and plug type in your maintenance log. Monitor fuel economy and performance over the next few weeks.
Tip: Keep a simple wear-log to predict future replacements.
Diagnosis: Engine misfires or rough idle with potential loss of power
Possible Causes
- highWorn electrodes or eroded insulator (spark plug wear)
- mediumCarbon or oil fouling deposits on the plug
- lowIgnition coil or spark plug wire fault
Fixes
- easyRemove and inspect plugs; measure gap and compare to spec; replace if worn or gap is out of spec
- mediumClean fouled plugs if slight and re-gap (temporary); replace if heavy deposits persist
- mediumInspect ignition coils and wires; replace suspected faulty parts
FAQ
What are common spark plug wear symptoms?
Common wear signs include misfires, rough idle, hesitation under load, and reduced fuel economy. Visual cues like eroded electrodes or burnt insulators confirm wear.
Common wear signs are misfires and rough idle, often with a visual cue of worn electrodes.
Can I drive a car with worn spark plugs?
Driving with worn plugs can damage the engine and catalyst. Plan a replacement at the next convenient service to avoid further risks.
Driving with worn plugs is risky; replace them soon.
How often should I inspect for wear?
Inspect during routine service or whenever you notice symptoms. Replacement intervals vary by plug type and engine design.
Check during service; follow your engine’s guidance.
Is cleaning ever a good idea for worn plugs?
Lightly fouled plugs may be cleaned, but visible wear or damaged electrodes require replacement to ensure reliable ignition.
Cleaning might help briefly, but worn plugs should be replaced.
How do you determine the correct replacement gap?
Refer to the engine manual and use a gap tool to set the exact distance before installation.
Check your manual and gap the plug precisely.
What other parts should I check if plugs show wear?
Check ignition coils, wires, and seals; misfires can be caused by these parts even if plugs look worn.
Look at coils and wires too, not just plugs.
Watch Video

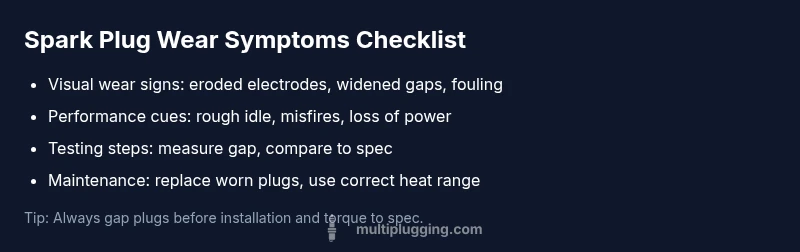

Main Points
- Spot wear signs early to prevent engine damage
- Always check gap and heat range before replacement
- Differentiate wear from fouling for proper action
- Replace worn plugs promptly to protect catalytic converter
- MultiPlugging's verdict: replace worn plugs promptly
