Where to Apply Dielectric Grease on Spark Plug: A DIY Guide
Learn exactly where to apply dielectric grease on spark plugs, how much to use, and best practices so you can service your ignition system confidently and safely.
In most cases, apply a thin smear of dielectric grease to the inside of the spark plug boot (the rubber connector) to seal out moisture and corrosion. Do not apply grease to the spark plug’s metal threads or the electrode. Use silicone-based dielectric grease and a light touch to avoid coating heat transfer surfaces.
What dielectric grease is and why it matters
Dielectric grease is a silicone-based compound that electrically insulates and seals connections. In the spark plug boot, it helps prevent moisture, corrosion, and dirt from compromising the connection while allowing easy removal later. The MultiPlugging team emphasizes using a light touch and avoiding contact with metal heat-transfer surfaces. This simple step does not increase spark energy, but it preserves reliability and aids maintenance. Keeping the boot interior dry reduces misfire risk in damp climates and during winter driving, where moisture intrusion is common.
The science behind dielectric grease and spark plug seals
Dielectric grease is non-conductive, meaning it insulates rather than conducts electricity. When applied inside the boot, it forms a moisture barrier and reduces the risk of corrosion at the metal-to-rubber interface. It also helps the boot slide off the plug during service without tearing. Silicone-based formulas resist heat and remain flexible in engine bays, maintaining a seal even after repeated removal and reinstallation. According to MultiPlugging analyses, the preserved seal can contribute to easier future maintenance and more consistent boot seating.
Where to apply dielectric grease on spark plugs
Apply a very thin layer to the inside of the spark plug boot—the rubber portion that presses onto the ceramic insulator. This ensures contact surfaces remain dry while still allowing electrical contact at the terminal. Coverage should be limited to the interior walls where the boot touches the metal terminal; avoid applying grease to the electrode, plug threads, or areas exposed to combustion heat. A light film is sufficient to seal without affecting heat transfer or causing slickness on hot surfaces.
Where not to apply dielectric grease on spark plugs
Do not apply dielectric grease to the spark plug threads, the electrode tip, or any combustion-facing surfaces. Excess grease can trap dirt, hinder heat transfer, and promote fouling. If you’re using anti-seize on the threads, apply it separately and sparingly according to the vehicle’s torque specs. For spark plug boots, keep grease away from the metal contact area where heat is transferred to the engine head, and never coat the inside of the electrode end that sits atop the ceramic.
Safety and compatibility considerations
Before you begin, ensure the engine is cool and the battery is disconnected. Choose a silicone-based dielectric grease, widely compatible with automotive plastics and rubber components. Avoid petroleum-based greases, which can degrade rubber seals over time. Verify compatibility with your specific vehicle by consulting the owner’s manual or service guide. If you’re unsure, start with a small amount on a test boot to gauge fit and seating.
Step-by-step practical guide: context for applying dielectric grease (narrative)
Imagine a four-cylinder engine during routine maintenance. You’ve removed the ignition coil pack for access and cleaned the boots. Now inspect each spark plug boot for cracks or stiff rubber. Wipe the interior dry with a lint-free cloth. Apply a finger-thin layer of dielectric grease to the inside of the boot, then press the boot firmly onto the plug until seated. Repeat for all cylinders, then reinstall the coil pack and reconnect the negative battery lead. This approach minimizes moisture ingress and makes future boot removal smoother.
Choosing the right grease: silicone-based vs other types
Silicone-based dielectric grease is the standard choice because of its stability under heat and resistance to moisture. Some brands offer specialized blends, but the goal is a non-conductive, flexible barrier that never hardens. Avoid petroleum-based products on rubber components, as they can cause swelling and long-term damage. A small amount is all that’s needed; more is not better and can create residue that attracts dirt.
Common mistakes and troubleshooting
Common mistakes include applying too much grease, which can attract dust and lead to misfires, and applying grease to the electrode or threads. If you notice misfires after a plug service, recheck boot seating and ensure the interior is clean. If a boot shows wear or damage, replace the boot assembly rather than attempting a cure with grease. In moisture-prone climates, periodic inspection during service intervals is prudent.
Maintenance, reapplication, and long-term care
Use dielectric grease only when you service spark plugs or boots, and avoid reapplication on the same surfaces unless you are performing a repair or replacement. In humid or salty environments, recheck the boot seals at each service interval and replace worn boots as needed. Store grease in a cool, dry place and keep the nozzle clean to prevent contamination. Regular boot and plug inspection keeps ignition reliability high and reduces service surprises.
Tools & Materials
- Spark plug socket wrench (with rubber insert)(Sizes vary by vehicle; common sizes are 5/8" or 13/16"; use a wobble or universal joint if space is tight)
- Torque wrench (optional but recommended)(Follow vehicle torque specs when reinstalling plugs)
- Silicone-based dielectric grease(Small pea-size amount per boot; avoid petroleum-based greases)
- Anti-seize compound (optional)(Apply only to threads if recommended by manufacturer and sparingly)
- Clean, lint-free rags(Use to wipe interior of boots and plug wells; avoid leaving fibers behind)
- Gloves(Protect hands from diesel and solvents; nitrile recommended)

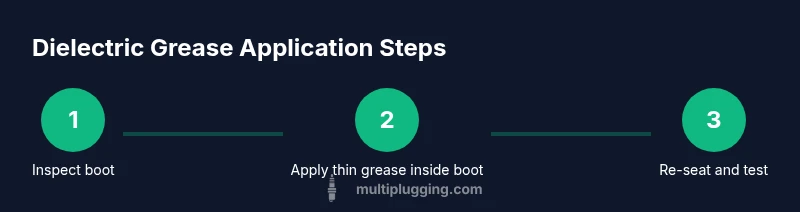

Steps
Estimated time: 45-60 minutes
- 1
Safety prep
Turn off the engine, disconnect the negative battery terminal, and allow the engine to cool. Safety first prevents accidental shocks and burns during handling around live electrical components.
Tip: Never work on a hot engine; waiting 10-15 minutes is usually enough. - 2
Expose the plugs
Remove the engine cover or any shielding needed to access the spark plug boots. Gently disconnect the ignition coil or boot from each plug without pulling the wire. Take note of the position to ensure correct reassembly.
Tip: Label or photograph each boot position if you’re doing multiple cylinders. - 3
Inspect and clean
Carefully inspect the boots and surrounding areas for cracks, oil, or dirt. Wipe the boot interior clean with a lint-free cloth. This ensures the grease sits on clean, dry surfaces for a proper seal.
Tip: If a boot is damaged, replace the boot assembly rather than just cleaning. - 4
Apply grease to boot interior
Squeeze a very small amount of silicone dielectric grease onto your gloved finger or a clean tool. Lightly rub the inside of the boot’s rubber interior to create a thin film. Avoid applying to the metal terminal or the ceramic insulator.
Tip: A pea-sized amount for each boot is more than enough. Too much grease can trap dirt and cause misfires. - 5
Re-seat and secure
Push the boot back onto the spark plug until it seats firmly. Reconnect ignition coils or wires as required. Ensure the boot is fully seated to prevent moisture ingress on startup.
Tip: Do not force a boot that doesn’t click into place; remove and recheck seating. - 6
Final checks and test
Reconnect the battery, update any service logs, and start the engine to confirm a smooth idle. Listen for misfires and verify that all boots are properly seated. If any misfire persists, re-inspect the boots and connections.
Tip: A quick test drive after service helps catch intermittent issues early.
FAQ
Where should dielectric grease be applied on spark plugs?
Dielectric grease should be applied inside the spark plug boot where it contacts the rubber interior, not on the electrode or the plug threads. This creates a moisture barrier and eases removal.
Apply dielectric grease inside the boot where it contacts the rubber interior, avoiding the electrode and threads.
Can dielectric grease cause misfires?
Yes, if applied to the electrode, threads, or exposed metal surfaces, grease can cause misfires or improper heat transfer. Apply only a thin layer inside the boot interior.
Grease can cause misfires if placed on the wrong surfaces; keep it inside the boot's interior only.
Is silicone dielectric grease compatible with all spark plugs?
Silicone dielectric grease is broadly compatible with most spark plug boots and ignition components, but always check the vehicle manual for model-specific cautions.
Most spark plug boots are compatible, but consult your vehicle manual for any model-specific notes.
Do I need to clean plugs before applying grease?
Yes. Ensure the boot interior and plug wells are dry and free of oil or debris before applying grease. This helps the seal and seating be reliable.
Clean the boots and wells first to ensure a good seal and seating.
How often should I reapply dielectric grease on spark plugs?
Reapply only during plug service or boot replacement. Regular reapplication is unnecessary and can accumulate dirt.
Only reapply when you service the plugs or boots; no need for frequent reapplication.
Watch Video
Main Points
- Apply grease only to the boot interior, not to metal surfaces.
- Use silicone-based dielectric grease for compatibility and durability.
- Keep grease amount minimal to prevent dirt attraction and misfires.
- Inspect boots for wear and replace if damaged during service.
