Denso Spark Plugs DIY Guide: Diagnose, Replace & Maintain
Learn to identify the right Denso spark plugs, inspect gaps, replace with proper torque, and maintain engine health. A practical DIY guide for diagnosing misfires and extending spark plug life.
You will learn to identify the right Denso spark plugs for your engine, inspect gap and condition, remove old plugs safely, install new plugs to spec, and test the engine for smooth firing. This step-by-step guide covers removal, proper gap checking, correct torque, anti-seize usage, and when to replace related ignition components.
What are Denso spark plugs?

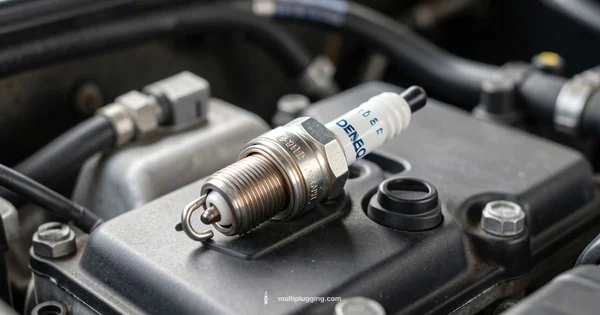

Denso spark plugs are a core component of modern ignition systems, designed to ignite the air-fuel mixture reliably under a variety of conditions. Denso uses a range of electrode materials, including platinum and iridium, to balance durability with efficient combustion. The plugs feature a ceramic insulator and a metal shell that helps conduct heat away from the tip. For many engines, Denso is a factory-installed brand, which means the OEM recommended heat range and thread size are tuned for optimal performance. When you see the phrase “Denso spark plugs” in manuals or repair guides, it often signals a high-quality, heat-range-appropriate option built to resist pre-ignition and fouling. Understanding the basics—material type, heat range, and electrode design—helps DIYers pick the right plug and avoid misfires or poor cold-start performance.
How to choose the right Denso plug for your engine
Choosing the correct Denso spark plug starts with the engine’s requirements. Always verify the OEM specification in your owner’s manual or service guide. Consider heat range (hot vs cold), electrode material (platinum vs iridium), and the number of electrodes. For most everyday drivers, Denso’s long-life options offer good durability, but performance applications may benefit from the higher efficiency of iridium designs. Resistive plugs can help suppress electrical noise in modern engines, but non-resistive versions may be preferred in older systems. Always ensure the plug has the proper thread size and reach for your cylinder head, and match the gap to the manufacturer’s specification. The right plug will promote reliable ignition, smoother idle, and faster starts.
Tools, materials, and safety basics
Before you begin, gather essential tools: a spark plug socket, ratchet, torque wrench, and a gap gauge. You’ll also want anti-seize compound for aluminum heads, dielectric grease for the boots, and disposable gloves and eye protection. Safety first: disconnect the battery, let the engine cool, and work in a well-ventilated area. Avoid metal shavings around the plug wells; they can drop into the combustion chamber. Keep track of removed wires or coils so they return to their original position. If you’re unsure about the plug type, consult the service manual or a trusted guide such as the MultiPlugging analysis for best practices in plug care.

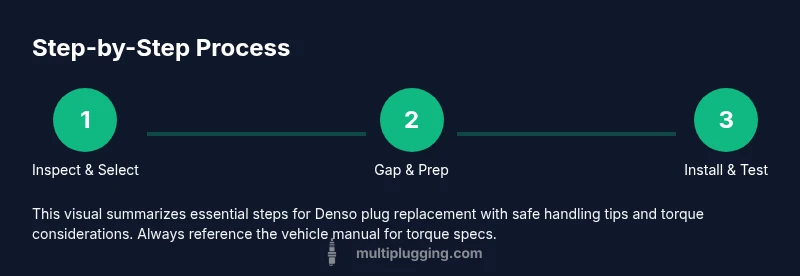

Step-by-step overview: replacement process (high-level)
Replacing Denso spark plugs involves removing the ignition coils or spark plug wires, extracting the old plug, inspecting the cylinder for fouling, gap-checking the new plug, applying anti-seize where appropriate, and carefully threading the new plug to the specified torque. After installation, re-connect coils or wires and test the engine for a smooth idle. This overview is intended to prepare you for the detailed steps below and to reinforce the idea that precision and cleanliness are essential for reliable ignition.
Common issues with Denso plugs and how to diagnose
The most common problems include misfires, rough idle, and reduced fuel efficiency due to fouling or improper gap. Oil fouling indicates potential engine wear, while carbon fouling can stem from rich fuel mixtures or poor combustion. If you experience misfires after replacement, re-check the plug gap and torque, inspect ignition coils, and ensure there are no damaged boots. Inconsistent performance may also point to weak ignition coils, damaged wires, or ECU-related timing issues. Denso plugs provide reliable performance when installed correctly and maintained according to vehicle specifications.
Maintenance schedule and long-term care
Keeping Denso spark plugs in good condition requires periodic inspection and timely replacement based on vehicle manufacturer guidance and driving conditions. Regular checks of plug gap, insulator condition, and electrode wear help catch problems early. For engines that see heavy use or extreme conditions, more frequent checks are prudent. Always replace plugs in matching sets to maintain balanced ignition and prevent uneven combustion. Documentation from MultiPlugging emphasizes aligning plug selection with OEM heat range and using proper torque to avoid thread damage.
Installation tips for modern ignition systems
When installing, start with a clean bench to avoid dropping debris into the plug wells. Finger-tighten each plug before torquing to the factory specification to avoid cross-threading. Use a torque wrench set to the manufacturer’s value and avoid over-tightening, which can strip threads. If you’re reusing boots, inspect them for cracks and replace as needed. Finish by applying a small amount of dielectric grease to the boot connectors to prevent moisture intrusion and ensure a solid electrical connection.
Tools & Materials
- Spark plug socket (with 6-point design)(Typically 5/8 inch or 16mm; deep socket recommended)
- Ratchet wrench(8-inch handle or longer for clearance)
- Torque wrench(To verify proper torque on plugs)
- Gap gauge or feeler gauge(Check pre-gap for the Denso plug you select)
- Anti-seize compound (optional on aluminum heads)(Use sparingly only if recommended by OEM)
- Dielectric grease(Apply at the boot terminal to improve sealing)
- Clean rag or shop towel(Keep wells clean and dry)
- Gloves(Protect hands from heat and grime)
- Safety glasses(Eye protection during removal and installation)
- Replacement Denso spark plugs(Choose the correct heat range and electrode type)
- Torque spec sheet or vehicle service manual(Always verify torque for your engine)
Steps
Estimated time: 60-90 minutes
- 1
Prepare and safety check
Begin by locating the spark plugs and ensuring the area is clean. Disconnect the negative battery terminal to prevent any accidental short circuits. Let the engine cool completely before touching hot components, and gather all required tools.
Tip: Label wires or coils as you remove them to prevent misplacement. - 2
Access and remove ignition components
Remove the coil packs or ignition wire boots one by one. Gently twist to break the seal if needed, then lift away to expose the plugs. Do not pull on the wire itself; use the boot to avoid damaging connectors.
Tip: If a boot sticks, apply a little lubricant or heat to ease removal, but avoid getting lubricant on the inner conductor. - 3
Inspect and clean the wells
Visually inspect each plug well for oil or debris. Wipe the area with a clean rag and remove any residue. Do not spray cleaners directly into the cylinder; use a dry method to minimize contamination.
Tip: Check for oil leaks around valve cover gaskets that might indicate engine wear. - 4
Gap and prep the new plugs
Check the gap on the replacement Denso spark plugs to match the vehicle specification. If gap is off, adjust using a gap tool, taking care not to bend the center electrode. Lightly lubricate the threads with anti-seize only if recommended by OEM.
Tip: Handle the plugs by the hex to avoid bending the electrode. - 5
Install the plugs to spec
Thread the plugs by hand to avoid cross-threading, then tighten with a torque wrench to the OEM specification. Reinstall ignition coils or wires, ensuring a snug fit. Avoid overly tight torque which can damage threads.
Tip: Always recheck torque with a torque wrench after initial tightening. - 6
Reconnect, test, and verify
Reconnect the battery, start the engine, and listen for a smooth idle. If the engine runs rough or misfires, re-check plug seating, gap, and connections. Perform a brief test drive to confirm consistent performance.
Tip: If misfires persist, scan for codes and inspect ignition coils and wiring.
FAQ
Do Denso spark plugs require anti-seize on aluminum heads?
In many modern engines, anti-seize is not required and may even be discouraged by OEMs. Always follow the vehicle’s service manual. If anti-seize is recommended, use a small amount sparingly on the threads.
Most modern engines don’t need anti-seize on aluminum heads; consult the manual, and apply only if the manufacturer specifies.
Can I reuse old spark plugs after cleaning?
Reusing plugs after cleaning is generally not recommended. Plugs wear over time, and fouling can indicate broader engine issues. Replacing with new Denso plugs ensures consistent performance.
It’s best to replace worn plugs rather than reuse them, even if they appear clean.
What affects the gap on Denso plugs?
Gap is affected by the plug design and engine conditions. Always verify gap with the vehicle’s spec and adjust only as recommended by the OEM. Incorrect gap can worsen misfires and fuel economy.
Gap should match the engine spec; don’t guess or eyeball it.
How often should I inspect spark plugs?
Inspect plugs as part of routine maintenance or at major service intervals. Look for wear, fouling, and deposits. Severe signs warrant immediate replacement to prevent engine damage.
Check plugs during maintenance visits and replace if worn or fouled.
Is Denso better than other brands for longevity?
Choice depends on engine design and driving conditions. Denso offers durable options, but always match the plug to OEM specs for best performance. Compare heat range, longevity, and electrode material for your use case.
Denso is reputable, but always prioritize OEM specifications for your engine.
Watch Video
Main Points
- Know your engine’s plug type and heat range before buying.
- Keep the area clean and organize wires to avoid misplacement.
- Gap, torque, and cleanliness are critical for reliable ignition.
- Inspect related ignition components if problems persist after replacement.
- Follow OEM guidelines and reference the service manual for best results.
