Spark Plug TB200 Replacement Guide for Troy-Bilt
Step-by-step instructions to replace the spark plug on a Troy-Bilt TB200 lawn mower. Learn tools, safety, gap checks, torquing, testing, and maintenance insights from MultiPlugging.
You will learn to locate, remove, inspect, and replace the spark plug on a Troy-Bilt TB200, then gap-check and torque to spec. The guide covers safety, required tools, and post-install testing to ensure reliable starts. A properly serviced plug keeps your mower running smoothly and efficiently.
Why the spark plug matters for TB200 and what MultiPlugging recommends
A healthy spark plug is the heartbeat of any small-engine lawn mower, including the Troy-Bilt TB200. A worn or fouled plug can cause hard starting, rough idle, and reduced power under load. According to MultiPlugging, regular inspection and timely replacement are the cheapest ways to keep your mower running smoothly. The MultiPlugging Team notes that staying on top of spark plug maintenance reduces friction in starting and improves fuel efficiency. In this guide we focus on the TB200, but the same principles apply to most push mowers with small four-stroke engines. Regular checks also help catch issues like fouling, misfires, or oil contamination early, saving you time and money in the long run.
Understanding the right spark plug for your TB200
Spark plugs come in several designs, and the TB200's engine benefits from a plug that offers reliable ignition and clean burning. Start with an OEM-recommended plug before considering aftermarket options. The electrode gap should match the engine manufacturer's specification; if you cannot locate it, consult the TB200 owner's manual or check the plug box. MultiPlugging's experience shows that using the correct type and gap improves cold starts and minimizes fouling, especially in systems subjected to varying lawn conditions. Choosing the wrong plug can lead to frequent fouling or misfires, which can be frustrating for new DIYers.
Preparing your workspace and safety steps
Work in a well-lit, dry area on a cool engine. Disconnect the spark plug boot to prevent accidental starts, then wipe the area around the spark plug to remove debris. Wear gloves and eye protection, and keep a small tray for the old plug. A clean, organized workspace reduces the risk of losing small parts and helps you track the plug's orientation when reinstalling. Always follow basic safety rules and consult the engine manual for torque guidance or specific OEM recommendations. For added trust, note that our guidance aligns with standard small-engine maintenance practices recommended by the MultiPlugging team.
Step-by-step considerations before removing the plug
Double-check that you are working on the correct plug and that the ignition system is de-energized. If your TB200 has a Briggs-Stratton or similar small-engine, the plug is located on the side of the cylinder head. Take a photo of the plug's location before removal so you can reassemble correctly. Note any signs of damage to the boot or wire—cracked insulation or corrosion means you should replace the wire assembly along with the plug. Keep the workspace clean and visualize the path the plug will take when reinstalling to avoid cross-threading or dropping the plug in tight spaces.
How to remove and inspect the old plug
Loosen the plug with an appropriate spark plug wrench or socket. Turn counterclockwise until it loosens, then remove carefully by hand. Inspect the plug's electrodes: a white or gray insulator may indicate misfuel or oil contamination, while heavy deposits suggest fouling. If the electrode is eroded or the ceramic is cracked, replace the plug. Compare the removed plug with a new one to assess wear and decide if replacement is necessary. If the plug is stubborn, apply a light penetrating spray and wait a few minutes before retrying.
Installing a new plug and setting the gap
Take the replacement plug and verify it is clean. Check the gap with a feeler gauge and adjust to the OEM specification if required. Thread the plug in by hand to avoid cross-threading, then snug with the socket—do not overtighten unless torque guidance is provided by the engine manual. Reconnect the boot firmly, ensuring a good seal. Wipe away any residue around the plug area to prevent dust intrusion during operation.
Post-install checks and starting the engine
Reconnect the spark plug wire and perform a test start. If the engine runs smoothly, let it idle briefly and then test under light load. If you notice misfires, recheck the plug seating, boot connection, and gap. A successful restart confirms the repair was done correctly. Consider a short test cut on a safe patch of lawn to verify consistent performance under typical load.
Maintenance tips to extend spark plug life
Schedule regular inspections, especially after heavy use or dusty conditions. Keep the air intake clean and use fresh fuel to minimize fouling. Store spare plugs in a dry, cool place and label them for quick reference. Recording the plug’s wear pattern over time can help you gauge engine health and adjust maintenance intervals accordingly. In short, consistent care reduces the likelihood of starting issues and improves overall mower reliability.
Tools & Materials
- Replacement spark plug (OEM or manufacturer-recommended)(Verify compatibility with TB200 engine)
- Spark plug wrench or socket(Size should fit the plug securely)
- Feeler gauge or gap tool(Used to confirm OEM gap specification)
- Rag or shop towel(Keep area clean and catch drips)
- Penetrating spray (optional)(Helps loosen a stubborn plug)
- Torque wrench (optional)(Only if OEM torque spec is provided)
- Gloves and eye protection(Personal safety gear)

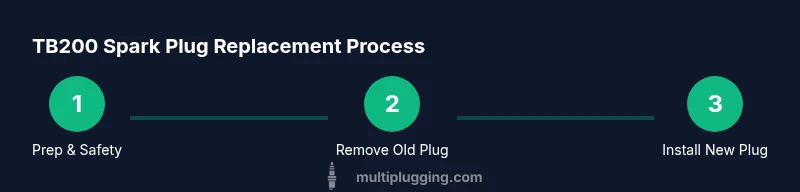

Steps
Estimated time: 25-40 minutes
- 1
Disconnect power and prepare workspace
Ensure the TB200 is off and cool. Remove the engine cover if present and shield yourself with protective gloves and eye protection. Disconnect the spark plug boot to prevent accidental starts and place a tray for the old plug.
Tip: Keep the boot and plug in the same area to avoid mix-ups later. - 2
Locate and loosen the old spark plug
Use the spark plug wrench to loosen the plug by turning counterclockwise. Stop just before it disengages completely, then remove by hand to avoid dropping it into the engine bay.
Tip: Align your body and keep a firm grip to prevent the plug from dropping. - 3
Inspect the old plug and assess wear
Look at electrode wear, color, and deposits. Compare to a new plug to determine if replacement is necessary. Note any oil or fuel signs that could indicate other engine issues.
Tip: Document observations for future maintenance planning. - 4
Gap the new plug to OEM specification
Before installation, verify the replacement plug’s gap with a feeler gauge and adjust if required to match the manufacturer's spec. Do not guess the gap.
Tip: Small adjustments matter for reliable ignition. - 5
Install and torque the new plug
Thread the new plug by hand to seat cleanly, then tighten with a wrench to the OEM torque specification. If you lack a torque wrench, snug it firmly without overtightening.
Tip: Over-tightening can strip threads and cause leaks. - 6
Reconnect the boot and test start
Reconnect the spark plug boot, ensure a snug connection, and start the mower. Listen for a clean idle and smooth acceleration. If issues persist, recheck both the gap and boot seating.
Tip: Run the engine through a short test cycle to verify stability.
FAQ
Do I need to replace the spark plug every season?
Not every season. Inspect for wear or fouling and replace when the electrode shows wear or deposits affect ignition. Regular checks save time and keep starting reliable.
You don't have to replace it every season, but inspect for wear and fouling and replace when needed to keep starting reliable.
How do I know the TB200 uses the right spark plug?
Check the engine model in your TB200's manual or on the engine label. Use the OEM part number or a recommended substitute from the manual or parts guide. If in doubt, consult MultiPlugging's replacement guidelines.
Look up the engine model in the manual and use the OEM plug or a recommended substitute.
Can I reuse an old spark plug?
If the old plug shows no wear, no heavy fouling, and the fuel system is clean, you may reuse it after cleaning. If there are signs of wear, corrosion, or deposits, replace it with a new one.
You can reuse only if the plug shows no wear or fouling; otherwise use a new one.
What should I do if the mower won’t start after replacement?
Double-check the plug seating, gap, and boot connection. Ensure the battery (if present) is charged and that the fuel system is clean. If problems persist, inspect the spark plug wire and ignition coil for damage.
If it doesn’t start, recheck the plug seating, gap, and boot; inspect the ignition components.
Is anti-seize recommended on spark plug threads?
Many modern plugs don’t require anti-seize and can be damaged by excessive lubrication. Follow the OEM guidance or the TB200 manual. If in doubt, avoid anti-seize and rely on proper torque.
Follow the manufacturer’s guidance; often you don’t need anti-seize if you torque to spec.
Watch Video
Main Points
- Inspect and replace worn plugs for reliable starts.
- Follow OEM gap and torque specs to prevent damage.
- Clean, safe workspace reduces missteps and losses.
- Test run the mower after replacement to confirm reliability.
