How to Use Helicoil for Spark Plug Repair (DIY Guide)
Learn how to use a helicoil to repair damaged spark plug threads, with step-by-step instructions, required tools, safety tips, and best practices for a reliable, long-lasting fix.
A helicoil can repair damaged spark plug threads in many engines when the core material is intact. Follow the step-by-step guide to prepare, install, and test the insert for a dependable seal. This quick answer highlights safety considerations, tool needs, and when to seek professional help if you're unsure.
What is a helicoil and when to use it for spark plug repair
A helicoil is a coil-threaded insert that creates new, durable threads inside a damaged hole. For spark plugs, it can restore thread engagement when the aluminum cylinder head has worn or stripped threads, allowing the plug to seal and torque correctly again. The insert is designed to distribute load and resist vibration, making it a popular repair choice when core material remains sound. According to MultiPlugging, using a helicoil properly can extend the life of the cylinder head and avoid a more invasive repair. The key is to ensure the hole damage is limited to threads and not a cracked boss or compromised seating surface. If the hole has suffered core material loss or cracking, helicoil repair may not be suitable and the head should be evaluated by a professional. After installation, verify the plug seats squarely and the head is not leaking. If you’re unsure about your engine’s compatibility, consult your service manual or a trusted technician.
Planning the repair: when helicoil makes sense
Helicoil repair suits thread wear, minor cross-threading, and stripped plug holes where the surrounding metal remains strong. It is not a cure-all for severe damage, deep cracks, or holes that have become oversized beyond the insert’s capability. Before starting, confirm the cylinder head material (aluminum heads are common for spark plugs) and identify the correct helicoil size and pitch for your thread. The process creates a new, durable thread inside the hole, so the outer seating surface must be clean and free of debris to seal properly. As with any thread repair, the goal is to restore original engagement length, gasket seating, and torque integrity. The MultiPlugging team emphasizes selecting the right kit and adhering to torque specs to avoid future issues.
Safety and prerequisites: set up for success
Begin with engine cooled, battery disconnected, and a clean, well-lit workspace. Wear eye protection and gloves to guard against metal shavings and sharp edges. Drain the coolant if necessary only for head work, and ensure any fuel or oil spills are contained. A steady hand and a clean work surface improve results and reduce the risk of debris falling into the combustion chamber. Keep a magnet or debris-catching tray handy to collect metal shavings. If you observe a cracked head or a heavily damaged boss, stop and seek professional service before attempting a helicoil repair.
Tools, materials, and preparation: what you’ll need
Before you start, inspect the damage and confirm you have the right toolkit. A helicoil repair kit sized for your specific plug thread is essential, along with a compatible tap and drill bit, a thread-cleaning brush, and a torque wrench for final reassembly. Additional items include penetrating oil, safety goggles, lint-free cloths, and anti-seize compound for aluminum heads. Having a clean, precise work area helps prevent debris from entering the cylinder. The goal is to re-create clean, straight threads that the helicoil can bite into for a secure seal.
Common alternatives and why helicoil might be preferred
Repair methods include inserting a helicoil, threading a larger plug, or replacing the cylinder head. Helicoils offer a good balance of minimal invasiveness, cost, and long-term durability when the surrounding material is solid. They usually require less downtime than a full head replacement and preserve original thread pitch and engagement length. While some engines tolerate other inserts or secondary repairs, helicoils are widely supported in automotive repair guides due to their strong grip and ease of installation when done correctly.
Real-world scenarios: when the fix works and when it doesn’t
In practice, helicoil repairs excel on engines with modest thread damage and intact seating surfaces. They are less reliable if the hole has become egg-shaped, the boss is cracked, or the plug seating area is deformed. In high-performance applications or older vehicles with frequent plug torque cycling, verify that the helicoil installation remains secure under operating temperatures and vibration. Regular inspection after several heat cycles helps catch loosening early. The approach is most effective when performed by someone with clean, patient technique and an understanding of your engine’s torque points.
Safety-first: post-repair checks and reassembly tips
After installing the helicoil, recheck the thread engagement and ensure the spark plug seats freely without bottoming out. Apply a light coat of anti-seize or appropriate thread lubricant if recommended by your vehicle manufacturer, then torque the plug to the OEM specification with a calibrated torque wrench. Run the engine briefly and perform a leak test around the plug to confirm a proper seal. Keep an eye on any abnormal exhaust smell, misfire indications, or coolant leaks near the head, which could signal a mounting fault or another issue.
Maintenance and long-term care for repaired threads
With a helicoil repair, routine checks of the plug seating and torque are prudent. If the vehicle is in a dusty or humid environment, inspect the area more often for signs of loosening or corrosion. Replace spark plugs on schedule and use anti-seize compounds only when recommended to avoid thread buildup or over-torque. Document the repair in your vehicle maintenance log so future technicians understand the history of the head repair. The goal is consistent sealing, reliable spark delivery, and a durable repair that withstands vibration and heat.
Tools & Materials
- Helicoil repair kit compatible with spark plug threads(Choose kit size to match your cylinder head thread (engine manufacturer spec).)
- Helicoil taps and drill bits(Kit includes the correct drill bit and tap for the insert size.)
- Thread cleaner/brush(Use to remove debris after drilling and tapping.)
- Torque wrench for spark plug installation(Follow OEM torque spec to avoid over/under-tightening.)
- Penetrating oil or lubricant(Helpful for stubborn shavings and to ease cutting operations.)
- Safety goggles and work gloves(Protect eyes from metal shavings; hands from sharp edges.)
- Lint-free cloths and shop towels(Keep the work area clean and avoid fibers entering the plug hole.)
- Anti-seize compound (optional for aluminum heads)(Use only if recommended by OEM guidelines.)

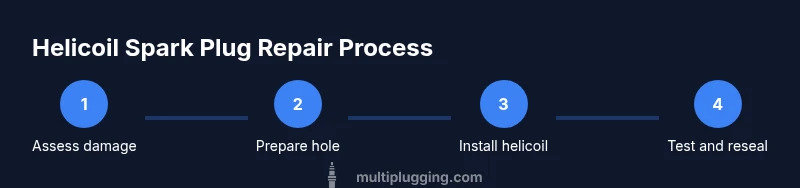

Steps
Estimated time: 60-90 minutes
- 1
Assess the damage and select the repair approach
Carefully inspect the spark plug hole for thread wear, cross-threading, or exposure of the base material. Decide if helicoil repair is appropriate based on hole integrity and head condition.
Tip: If the boss is cracked or the hole is egg-shaped, escalate to professional repair. - 2
Gather tools and prep the work area
Arrange the helicoil kit, taps, drill, torque wrench, and protective gear in a clean, organized space. Disconnect the battery and ensure the engine is cool.
Tip: Lay out all parts in order to minimize misplacement of small inserts. - 3
Drill and tap the hole to the helicoil size
Using the kit’s drill bit first, create a clean pilot hole. Follow with the tap to cut new threads that will accept the helicoil insert.
Tip: Go slow and keep the drill/percussion perpendicular to the surface to avoid enlarging the hole. - 4
Clean and deburr the new threads
Clear debris from the hole with a thread brush and light oil or solvent as needed. Ensure the new threads are sharp and free from burrs.
Tip: A deburred hole reduces the risk of insert misalignment. - 5
Install the helicoil insert
Thread the helicoil into the freshly tapped hole using the installation tool supplied in the kit until seated flush with the surface.
Tip: Ensure the insert sits below the surface so it doesn’t protrude into the combustion chamber. - 6
Reinstall the spark plug and torque to spec
Thread the spark plug by hand to avoid cross-threading, then tighten to the OEM torque specification with a calibrated torque wrench.
Tip: Never reuse damaged plugs after the repair; replace with a new plug for best results. - 7
Check seal and perform a basic test
Reinstall any components, reconnect the battery, and run the engine briefly to confirm no leaks around the plug.
Tip: A quick compression or leak test can help verify the repair’s integrity. - 8
Document and monitor
Record the repair details in your vehicle log and monitor the plug area after a few heat cycles for any signs of looseness or leaks.
Tip: If symptoms return, re-check torque and sealing surface promptly.
FAQ
Can a helicoil repair fix a completely stripped spark plug thread?
A helicoil can restore function if the surrounding head material is still sound and the damage is limited to the threads. Severe material loss or a cracked boss may require a head replacement. Always verify with a professional if you’re uncertain.
A helicoil works when the metal around the hole is solid; if the head or hole is severely damaged, you may need a replacement.
Do I need to remove the cylinder head for helicoil installation?
In many cases you can perform helicoil repairs with the head installed, but some vehicles require partial disassembly to access the plug thread area. Refer to the service manual for your specific engine.
Often you can work with the head in place, but some cars require removal for full access.
What tools are essential for helicoil spark plug repair?
A compatible helicoil repair kit, taps, drill bits, a thread cleaner, a torque wrench, and basic PPE are essential. Having a clean workspace reduces the risk of introducing debris.
You’ll need the helicoil kit, taps, drill, and a torque wrench, plus safety gear.
Is helicoil repair suitable for aluminum heads only?
Helicoil repairs are commonly used on aluminum heads but can be suitable for certain cast iron configurations depending on thread size and conditions. Check OEM guidance before proceeding.
It’s common on aluminum heads, but always verify with your OEM guidelines.
How do you verify a helicoil installation is correct?
Ensure the insert sits flush with the head surface, the plug threads cleanly, and the plug torques to spec without resistance. A leak test or compression test can confirm sealing.
Check flush seating, clean threads, and proper torque; test for leaks.
What are the risks of over-torquing a helicoil repair?
Over-torquing can strip the new threads or damage the helicoil and surrounding metal, compromising the repair and possibly causing head damage. Always follow OEM torque values.
Over-tightening can ruin the repair; stick to the manufacturer’s torque spec.
Watch Video
Main Points
- Assess damage carefully before choosing helicoil repair.
- Use the correct helicoil size and follow torque specs.
- Cleanliness and precision are critical for a durable repair.
- Monitor the head after reassembly for signs of failure.
