How Do Spark Plugs Go In: A DIY Installation Guide
Learn how to install spark plugs safely and correctly. This step-by-step guide covers choosing the right plugs, gap checking, torque, and tips to avoid common mistakes for DIY enthusiasts.
Install spark plugs correctly with this practical guide. You'll learn how do spark plugs go in, how to choose the right plug, how to gap and torque to spec, and how to avoid common mistakes. This safe, step-by-step process is designed for DIYers to protect threads, prevent misfires, and keep engines running smoothly.
Why Correct Spark Plug Installation Matters
Understanding how do spark plugs go in is more than just threading parts into place. Correct installation affects cold starts, throttle response, fuel economy, emissions, and overall engine health. When plugs are gapped, torqued, and seated properly, they create reliable combustion every time you crank the engine. According to MultiPlugging, taking a careful, methodical approach reduces the risk of thread damage, cross-threading, and misfires that could otherwise lead to costly repairs. In addition, using the right heat range and ensuring a clean, dry sealing surface helps prevent deposits and seizing. By treating spark plug installation as a small but critical maintenance task, you extend engine life and keep your vehicle performing at its best.
How to Identify the Right Spark Plug for Your Engine
Choosing the correct spark plug is foundational. Start with your vehicle’s owner manual or the manufacturer’s specification to confirm the right heat range and thread size. There are several types—copper, platinum, and iridium—each with different longevity and firing characteristics. For most modern engines, a platinum or iridium plug with a fine-wire center electrode lasts longer and reduces fouling. Always verify the recommended gap for your engine and batch-test a few plugs if you suspect a mismatch. If you’re unsure about the heat range or gap, consult the service manual or a trusted guide like MultiPlugging to avoid misfires or poor performance.
Tools and Materials You'll Need
Before starting, assemble the essential tools and materials. A spark plug socket with a magnetic insert is key, along with a socket wrench and a torque wrench for proper seating. Have a gap gauge or feeler gauges handy to verify or adjust the gap, and keep a small brush or rag for cleaning the plug wells. If your engine requires anti-seize or dielectric grease, note those specifics in your car’s service notes. Keeping everything organized and within reach reduces the chance of dropping a plug or mixing up cylinders. Remember, the goal is clean threads and a tight, even seat without over-tightening.

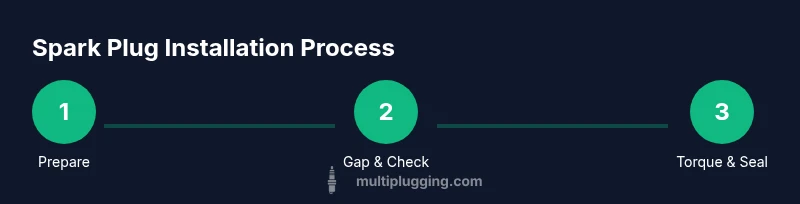

Step-by-Step Overview to Install Spark Plugs
The basic workflow is straightforward: locate the spark plugs, disconnect the ignition coils or wires, remove old plugs, inspect the wells, gap new plugs, thread them in by hand, then torque to spec and reattach the coils or wires. This section provides a high-level map that you’ll follow in detail in the formal STEP-BY-STEP sequence. Being methodical and patient pays off: engines are built with precise tolerances, and a rushed install can cause cross-threading or seat damage. Treat every plug as unique to its cylinder and keep track of which plug came from which hole to avoid confusion during reassembly.
Pre-Installation: Safety and Prep
Safety comes first. Ensure the engine is cool before touching spark plugs to avoid burns or warped components. Work in a well-ventilated area and disconnect the battery if you plan to remove multiple coil packs. Clean the immediate area around each plug to minimize debris falling into the combustion chamber. If you notice oil, coolant, or heavy deposits around the plug wells, diagnose and address those issues before proceeding. Keep a tidy workspace and label any wires or coils to simplify reassembly.
Cleaning and Preparing Spark Plugs Before Install
Take a quick look at the old plugs to assess wear, deposits, or fouling. If the electrode shows excessive erosion or heavy fouling, replace rather than reuse. For the new plugs, verify the gap with a gap gauge if pre-gap isn’t guaranteed. Use a clean rag to wipe the threads and seating surface on the cylinder head to ensure a clean seal. If your engine calls for anti-seize or dielectric grease, apply sparingly according to the manufacturer’s guidance, avoiding excessive lubrication that can attract debris.

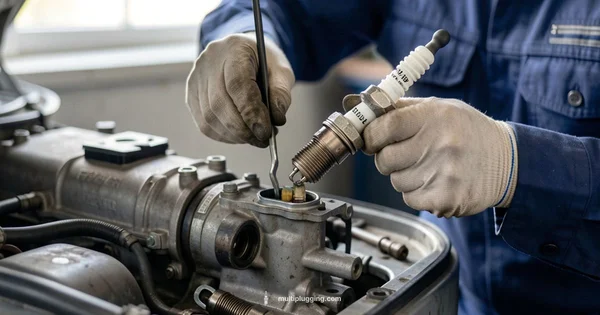

Inserting and Torquing: Correct Technique
Gently thread the plug by hand to avoid cross-threading, then snug it with the spark plug socket. Use a torque wrench to seat the plug to the manufacturer’s specification—too loose causes misfires, too tight risks thread damage. Always align the plug to the deepest part of the thread and avoid forcing it if resistance is encountered. After installation, reattach the ignition coil or wires securely and route any harnesses away from hot surfaces to prevent damage.
Post-Installation Checks and Testing
With plugs installed, start the engine and listen for a smooth idle. If you notice rough running or a malfunction indicator light, there may be a misfire or a gap issue. A quick scan with an OBD-II reader can help identify misfire codes or cylinder-specific faults. Check for exhaust odors, unusual smoke, or leaks around the plug wells. Finally, recheck the spark plug torque after a short drive to ensure nothing loosened during initial operation.
Common Mistakes to Avoid and Quick Troubleshooting
Common mistakes include over-tightening plugs, cross-threading, using the wrong heat range, and neglecting to gap or clean the seat area. If a plug is difficult to thread, back it out and inspect the threads for damage or debris. Never force a plug; if resistance remains, stop and reassess. When in doubt, refer to the vehicle’s service manual or a trusted guide like MultiPlugging for engine-specific guidance. Proper procedure minimizes the risk of misfires and keeps your engine running reliably.
Why Seat and Gap Accuracy Is Critical
Seat depth and correct gap ensure proper compression, combustion, and spark timing. A plug seated too shallow can loosen under vibration, while over-tightening may strip threads. An incorrect gap changes ignition timing and fuel-air mix, leading to poor starting performance and reduced efficiency. Always verify the gap before installation and re-check after installation to catch any drift from manufacturing tolerances.
Tools & Materials
- Spark plug socket with magnetic insert(3/8 in drive recommended; use 6-point socket if possible)
- Ratchet wrench and extensions(For reach and leverage)
- Torque wrench(Use manufacturer torque spec; avoid guessing)
- Gap gauge or feeler gauge(Verify the plug gap before install)
- New spark plugs (correct type for engine)(Check heat range and plate design)
- Anti-seize compound(Only if recommended by engine manufacturer)
- Dielectric grease(Lightly apply on inside of boot if prescribed)
- Cleaner rag or small brush(Clean plug wells and seating surfaces)
- Thread cleaner or tap (optional)(Use only if threads are damaged or dirty)
Steps
Estimated time: 60 minutes
- 1
Power down and access plugs
Park the car on a flat surface, switch off the engine, and disconnect the battery if you’ll be removing multiple components. Locate the spark plug wires or coils and prepare the workspace so tools are within reach.
Tip: Label each coil/wire so you know which goes where during reassembly. - 2
Clear the area around plugs
Remove any covers or components that obstruct access to the plugs. Use a clean rag to wipe away dirt from the surrounding area to prevent debris from falling into the cylinder.
Tip: Keep debris out of the well to avoid fouling the new plug. - 3
Disconnect ignition coils or wires
Carefully unplug each coil pack or spark plug wire by lifting the boot, not pulling on the wire. Keep track of which coil corresponds to which cylinder.
Tip: If a coil is stubborn, apply a gentle wiggle rather than force. - 4
Inspect/remove old plugs
Use the spark plug socket to loosen and remove the worn plug. Inspect the base threads in the head for signs of damage or oil intrusion.
Tip: If the plug is resistant, don’t force it; back it out and re-check alignment. - 5
Inspect wells and seating surface
Look for oil, carbon, or debris. Clean the seating surface with a rag; ensure the threads are clean before inserting the new plug.
Tip: Oil on threads can cause poor seating; address oil leaks if present. - 6
Gap the new spark plugs if needed
Check and adjust the gap on the new plugs using a gauge. Do not force-gap electrodes; use the correct gauge to avoid over-bending.
Tip: If you’re unsure of the gap specification, consult the owner manual. - 7
Thread plugs by hand initially
Carefully thread the new plug by hand to prevent cross-threading. Stop if resistance increases and remove, then re-align.
Tip: Finger-threading reduces thread damage risk. - 8
Torque plugs to spec
Once seated by hand, tighten with a torque wrench to the engine manufacturer’s specification. Avoid overtightening to protect threads.
Tip: Use a torque wrench that reads in the units your manual specifies. - 9
Reconnect coils/wires and finalize
Reattach the coil packs or plug wires securely. Reassemble any components removed earlier and double-check routing.
Tip: Run the engine briefly to confirm a smooth idle.
FAQ
What tools do I need to replace spark plugs?
A spark plug socket with a magnetic insert, a ratchet, a torque wrench, a gap gauge, and new plugs are the core tools. Depending on the engine, you may also need coil removal tools or pliers for boot connectors.
You’ll need a spark plug socket, a ratchet, a torque wrench, a gap gauge, and new plugs. Some engines require coil tools for easier access.
Can I gap the spark plugs myself?
Yes, if you have the correct gap specification for your engine. Use a gap gauge and avoid forcing the electrode. If you’re unsure, buy pre-gapped plugs and verify with a gauge.
You can gap them yourself with the right spec and a gap gauge. If unsure, use pre-gapped plugs and check them.
What is the proper torque for most spark plugs?
Torque varies by engine and plug size. Always torque to the manufacturer’s specification using a torque wrench and never rely on feel alone.
Torque to the exact spec from the manual using a torque wrench.
Should I use anti-seize on spark plug threads?
Many modern engines do not require anti-seize and can be damaged by excess lubrication. Follow the manufacturer’s guidance for your specific engine.
Only use anti-seize if the manual says so; many engines don’t need it and it can cause overtightening.
What happens if a spark plug is cross-threaded?
Cross-threading can strip the cylinder head and cause leaks or misfires. If detected, stop and repair the thread or replace the head component as needed.
Cross-threading can seriously damage the head, so stop and fix it if you suspect it.
Do I need to replace ignition coils when replacing plugs?
Not always. If coils show signs of wear or misfires, inspect and test them, but generally plugs can be replaced independently unless the service manual recommends simultaneous replacement.
Coils aren’t always needed to be replaced with plugs, but test them if you suspect coil problems.
Watch Video
Main Points
- Identify the correct plug type and gap before install
- Thread by hand, then torque to spec
- Keep the plug wells clean to avoid misfires
- Recheck after a short drive to confirm seating
