HKS M45IL Spark Plugs: Install, Diagnose, and Maintain
Educational, step-by-step guide to inspecting, gap checking, installing, and testing HKS M45IL spark plugs for reliable ignition and optimal performance.
This guide teaches you how to safely inspect, gap, replace, and test HKS M45IL spark plugs in most gasoline engines. You'll learn recommended gap ranges, tool cues, and common symptoms of fouling or misfires, with caution notes for hot tips and torque values. Follow the step-by-step process to minimize risk and maximize performance.
What are HKS M45IL spark plugs?
HKS M45IL spark plugs are a performance-oriented model used in a range of engines to promote reliable ignition under higher heat and pressure. They emphasize a robust seal, consistent heat range, and a well-centered electrode to help sustain a steady, powerful spark. For DIY enthusiasts, selecting the right plug means verifying compatibility with your engine's ECU, compression ratio, fuel system, and OEM recommendations. According to MultiPlugging, using the correct plug type can improve throttle response and idle stability, especially in mildly tuned or stock setups. In practice, you should confirm that the M45IL plugs fit your vehicle’s thread size, reach, and heat range, and you should avoid retrofitting a plug with a notably different gap or heat range without adjustments to ignition timing and fueling. This section sets the stage for safe replacement and reliable ignition outcomes.
Why choose HKS M45IL for your engine?
Choosing HKS M45IL plugs is about matching heat range, insulator design, and electrode geometry to your engine’s demands. The M45IL line is designed to resist fouling on modern setups, providing stable ignition across varying loads. MultiPlugging analysis shows that using a plug designed for your engine’s compression and fuel system can reduce misfires during high-load operation and improve throttle response. The plug’s performance also hinges on correct gap maintenance, clean seating surfaces, and proper installation torque. If your engine is stock, the M45IL may offer modest improvements in idle quality and driveability; on tuned configurations, it can help maintain reliable ignition under higher pressures. Always cross-check with the vehicle’s owner manual and consult your mechanic or tuner before changing heat range. This ensures you avoid excessive heat or detonation risk while maximizing the plug’s expected life.
Compatibility and engine considerations
Compatibility depends on engine design, ignition system, and plug seating configuration. HKS M45IL plugs are commonly used in performance-oriented engines with modern coil-on-plug or distributorless systems, where the ignition control supports cooler or hotter plugs as required. Before purchasing, confirm thread size, reach, and electrode configuration match your cylinder head. If your car uses coil-on-plug ignition, ensure the coil boot fits the plug’s seating depth. For distributor-based systems, verify that gap and heat range align with the wire and cap timing. Always verify the recommended gap and the torque range in your service manual, and consider whether a replacement may require ECU calibration or fuel map tweaks for optimum performance.
Tools and safety basics
Safety and planning come first. Gather essential PPE and tools before you start. Wear eye protection and gloves, and ensure the vehicle is on a level surface with the engine cooled. A clean workspace helps prevent debris from falling into wells. Keep a small magnet or magnetic tray handy for dropped parts. Use a high-quality spark plug socket with a rubber insert and a universal ratchet extension to reach tight spaces. A torque wrench is recommended to apply the manufacturer’s specified seating torque, and a gap tool or feeler gauge helps verify the correct gap on replacement plugs. Optional items like dielectric grease on the threads can improve sealing and prevent seizing. Finally, have a container to store old plugs for inspection or disposal. Following these basics reduces the risk of thread damage and ensures even heat transfer.
Preparing for replacement: gap check and prep
Before installing new plugs, decide whether to gap them according to the vehicle’s specification. Many modern plugs arrive pre-gapped, but if you’re using a mis-match or reusing plugs, verify gaps with a feeler gauge. Clean the spark plug wells and the cylinder head surface to avoid debris causing seating issues. If you’re replacing ignition components, inspect coil boots and wires for signs of aging or cracking and replace as needed. Have a spare new plug on hand in case you drop or damage one during handling. When you insert the new plugs, ensure the threads engage smoothly to prevent cross-threading. Finally, ensure the engine area is clear of tools before you begin the torqueing and seating process.
Step-by-step replacement overview

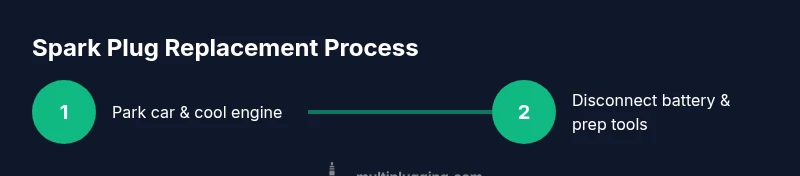

In broad terms, the replacement sequence is: park and cool the engine, disconnect the battery, locate each spark plug, remove the ignition coil or wire, extract the old plug, inspect the cylinder head threads, gap and check the new plug if needed, lightly coat threads if recommended, thread in the new plug by hand to avoid cross-threading, torque to the manufacturer’s specification, reattach the coil or wire, and repeat for each cylinder. After all plugs are installed, reconnect the battery and perform a basic start-up check. This overview serves as a safety-first guide before you dive into the detailed steps that follow.
Gap verification, seating and torque approach
Seating a plug correctly means ensuring the plug sits flush in the head without gap-induced gaps or binding. Start by threading the plug by hand to prevent cross-threading, then tighten with a torque wrench to the vehicle’s specification. Avoid over-tightening, which can strip threads or crack the head. After seating, confirm the coil boots are seated correctly on each plug and that there’s no interference with nearby components. If a plug is difficult to seat, stop and inspect the thread condition and seating depth. Always verify the torque with a calibrated wrench and re-check after installation.
Testing and diagnosing post-install
Once all plugs are installed, reconnect the battery and start the engine. Listen for irregular idle or misfires and use a diagnostic tool to check for any trouble codes. A smooth idle, steady RPM response, and good acceleration response indicate a successful install. Take the vehicle for a short test drive to monitor performance under load and at different throttle positions. If you notice any misfires, recheck plug seating, gap, and ignition wiring. Document any irregularities for future reference and consider a quick compression check if misfires persist despite correct installation.
Common mistakes and troubleshooting
Common mistakes include using the wrong heat range for the engine, cross-threading plugs, over-tightening, skipping gap checks, reusing worn or fouled plugs, and ignoring coil or wire condition. Poor seating can cause vacuum leaks and misfires; cracked boots or damaged connectors can mimic ignition problems. If misfires persist after replacement, verify fuel pressure, ignition timing, and ECU calibration, and recheck all connections. A systematic approach, coupled with clean tools and careful torqueing, minimizes these risks and helps you achieve reliable ignition performance.
Tools & Materials
- Spark plug socket with rubber insert(16mm socket fits most plugs; deep reach helps access tight spaces)
- Torque wrench(Use vehicle-recommended seating torque; refer to owner's manual)
- Ratchet and extensions(For reaching recessed plugs in crowded engine bays)
- Gap tool / feeler gauge(Verify or adjust plug gap to OEM spec)
- Dielectric grease or anti-seize (optional)(Light coat on threads or boots only if recommended by manufacturer)
- Clean rags(Wipe away debris around wells and plug seats)
- New spark plugs (HKS M45IL or equivalent)(Match thread size, reach, and heat range to engine)
Steps
Estimated time: 45-75 minutes
- 1
Park and cool engine
Park the vehicle on a level surface and allow the engine to cool completely to prevent burns and distorted threads. A cooler engine is easier to work on and reduces the risk of damage.
Tip: Work in a well-lit area and keep the hood propped safely. - 2
Disconnect the negative battery lead
Disconnecting the negative battery terminal prevents accidental shorts while you work around live circuitry and ignition components.
Tip: Label or tape the disconnected lead to avoid confusion during reassembly. - 3
Locate and expose spark plugs
Identify spark plug wells and remove any hardware shielding or covers that block access. Clear the area around each plug to prevent debris from falling into the engine.
Tip: Take a photo of wiring layout before removing to simplify reassembly. - 4
Remove ignition coils or wires
Carefully disconnect coil packs or plug wires, keeping track of which wire belongs to which cylinder. Use a gentle rocking motion to avoid damaging boots.
Tip: Keep connectors in a labeled tray to prevent mix-ups. - 5
Remove old plugs
Use the spark plug socket to unthread the old plugs. Turn counterclockwise until the plug loosens, then lift straight out to avoid damaging threads.
Tip: If a plug is tight, don’t force; apply penetrating oil and wait a few minutes. - 6
Inspect threads and wells
Check the cylinder head threads for damage and clean oil or debris from the wells. Damaged threads require professional attention before install.
Tip: Inspect the old plug for signs of fouling or abnormal wear to diagnose engine issues. - 7
Gap and prep new plugs
If required, gap the new plug to the engine spec with a precise feeler gauge. Lightly coat the threads with anti-seize or dielectric grease if recommended.
Tip: Avoid over-torquing the gap tool against ceramic insulation. - 8
Thread in new plugs by hand
Start each plug by threading by hand to avoid cross-threading. Once finger-tight, switch to the torque wrench for final seating.
Tip: Ensure plug seats squarely against the head before torquing. - 9
Torque and reseat ignition components
Use a torque wrench to seat plugs to spec and reconnect ignition coils or wires securely. Reinstall any shields or covers.
Tip: Double-check each connection to prevent misfires from loose boots. - 10
Reconnect battery and test start
Reconnect the battery, start the engine, and listen for smooth idling without misfires. Check for any CEL or codes if equipped.
Tip: Take a short drive to confirm no under- or over-fueling symptoms. - 11
Recheck and finalize
Confirm all tools are removed from the engine bay, and clear any remaining debris. Document any observations for future maintenance.
Tip: Keep the old plugs for inspection once the engine cools.
FAQ
What engines are compatible with HKS M45IL spark plugs?
Compatibility depends on thread size, reach, and heat range aligned with your engine. Check your vehicle manual and HKS specs for precise fitment.
Compatibility depends on thread size, reach, and heat range; check the manual and HKS specs.
Should I gap HKS M45IL plugs before installation?
Yes, verify the recommended gap with a feeler gauge before installation. Gap differences can affect ignition timing and combustion.
Yes, check the gap with a feeler gauge before installing.
Can I reuse old spark plugs when upgrading to M45IL?
Reusing old plugs is generally not recommended when upgrading to a higher-performance plug. Install new ones to ensure consistent performance and proper heat management.
Generally, use new plugs when upgrading for consistent performance.
What are common symptoms of worn plugs after replacement?
Common signs include rough idle, hesitation under load, reduced fuel efficiency, and occasional misfires. If symptoms persist, recheck gap and wiring.
Rough idle, hesitation, or misfires may indicate the need to check gap or wiring.
Do HKS M45IL plugs require anti-seize on threads?
Anti-seize is optional and depends on manufacturer guidance. If used, apply a light coat on threads only and avoid contaminating the electrode.
Anti-seize is optional; apply lightly on threads if recommended.
What should I do if a plug is difficult to install?
Back out and inspect threads for damage. Use penetrating oil if needed and reattempt with gentle, steady torque to avoid cross-threading.
Back out, inspect threads, and reattempt gently to avoid cross-threading.
Watch Video
Main Points
- Verify plug compatibility before purchase
- Gap, seat, and torque are critical for ignition reliability
- Follow a clean, systematic replacement procedure
- Test drive to confirm removal of misfires
- Document observations for future maintenance
