E3 22 Spark Plug: Diagnosis, Installation & Care
Learn how to diagnose, replace, and optimize the E3 22 spark plug with safe, practical steps. This MultiPlugging guide covers tools, step-by-step replacement, and maintenance tips for reliable ignition.
In this guide you will learn to diagnose, safely replace, and optimize the E3 22 spark plug in a DIY setup. You’ll confirm compatibility, gather essential tools, and follow a clear step-by-step process to avoid common mistakes. The focus is on safety, proper torque, and correct gap -- all to improve ignition reliability.
What is the e3 22 spark plug?
The e3 22 spark plug is a member of the E3 spark plug family designed for compatibility with a range of engines. In practice, the “22” designation typically indicates a heat range or model variant intended for use under specific operating conditions. When diagnosing ignition performance, expect wear patterns and deposits that differ from conventional plugs. According to MultiPlugging, the first step is to verify compatibility with your engine by consulting the vehicle manual and the plug manufacturer’s recommendations, then confirm you have the correct heat range and thread size for reliable operation. This ensures you’re not compromising compression or fuel economy by using the wrong plug in your engine.
Compatibility and engine considerations
Compatibility matters more than brand slogans. The e3 22 plug may be specified for certain engines, cylinders, or ignition systems. Always cross-check the owner’s manual, service bulletin, and the engine’s service log to confirm the exact plug type, heat range, and thread size. If in doubt, contact the vehicle manufacturer or a trusted mechanic. A plug that isn’t suited to your engine can cause misfires, reduced performance, and abnormal wear on ignition coils.
Signs of wear, fouling, and when to replace
Spark plugs wear gradually. Common signs include sluggish acceleration, rough idle, misfires, increased fuel consumption, and visible deposits or a worn electrode edge. If your plug shows heavy fouling, oil on the tip, or erosion of the center electrode, replacement is recommended. For engines currently using an E3 22 plug, route the inspection through a visual check, a gap measurement between the metal core and electrode, and a quick look at the boot for heat damage or cracks.
Tools, safety, and prep
Before you start, assemble essential tools and verify you have a clean workspace. PPE like gloves and safety glasses are a must. Gather a spark plug socket, ratchet, extension, gap gauge, a torque wrench (to your vehicle’s spec), and spare plugs. Keep a rag handy to wipe residue, and an anti-seize compound or dielectric grease as recommended by your vehicle’s manual. Safe handling of ignition components reduces the risk of shock or coil damage during removal.
Maintenance considerations and care
Routine care helps your E3 22 spark plug deliver consistent performance. After installation, recheck the plug gap if the engine experiences heat-cycle changes and verify the boot seats firmly on the plug. Use anti-seize on threads only if it’s specified for your cylinder head material; otherwise, skip it to avoid over-torque. Regularly inspect ignition coils, wires, and boots for cracks and wear, since a faulty coil can mimic plug problems and lead to misfires.
Installation pitfalls to avoid
Avoid cross-threading, over-tightening, or forcing the plug into a damaged seat. Use a magnetic pickup or plug socket to prevent dropping the plug into the engine bay. Always thread the plug by hand first, then torque to the manufacturer’s specification with a torque wrench. Do not reuse old gaskets or seals if corrosion is present, and avoid applying excessive force on the coil boot during installation, which can crack the boot and cause future misfires.
Troubleshooting post-replacement misfires
If misfires persist after replacement, check the following: correct gap on the new plug, proper seating of the boot, no damaged wires, and clean ignition coils. A misfire can also indicate fouling on other plugs, ignition coil wear, or fuel delivery issues. Systematically inspect each cylinder, swap wires to identify a faulty coil or boot, and verify that your vehicle’s computer isn’t throwing sensors-related fault codes.
Long-term care and performance expectations
With proper installation, your E3 22 spark plug should contribute to stable idle, steady acceleration, and efficient combustion. Keep a maintenance schedule that includes regular visual inspection, gap verification, and boot integrity checks. Remember to consult the vehicle’s service manual for heat-range recommendations and to follow any emission-control guidelines. Regular maintenance helps sustain performance and fuel economy.
Tools & Materials
- Spark plug socket (with rubber insert)(Ensure it fits the specific plug type; use 5/8 inch or 13/16 inch as applicable)
- Ratchet and extension(Longer extension helps access deep wells)
- Torque wrench(Consult vehicle manual for torque range; use controlled, precise tightening)
- Gap gauge or feeler gauges(Check gap to manufacturer spec)
- Anti-seize compound(Lightly on threads if suggested by manual)
- Dielectric grease(Lubricate ignition coil boot for easier removal)
- New spark plugs (appropriate for your engine)(Ensure correct heat range and thread size)
- Gloves and safety glasses(Basic PPE)
- Rag or shop towel(Clean working area and wipe residue)
- Spark plug boot puller(Optional tool to remove boot without damage)

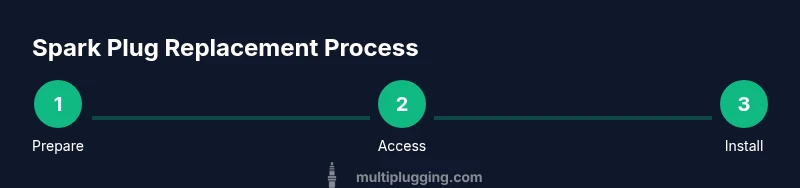

Steps
Estimated time: 25-45 minutes
- 1
Power down and prep the work area
Turn off the ignition, remove the key, and disconnect the negative battery terminal to avoid shocks. Allow the engine to cool if recently run, and clean the area around the spark plugs. This minimizes the risk of burns and keeps contaminants away from the plug threads.
Tip: Use a magnetic pick-up to keep the plug in sight and prevent dropping it into the engine bay. - 2
Access the spark plug
Remove any engine covers or shielding that block access to the spark plug wells. Clear debris from the area so you can see the plug and boot clearly. Access is easier with a long-handled extension and a swivel socket.
Tip: Take a photo before disassembly to help with reassembly order. - 3
Disconnect the boot and remove the old plug
Gently twist the ignition coil boot or plug boot to detach it from the spark plug. Use a socket to loosen the old plug by turning counterclockwise until it lifts out. Keep the plug straight to avoid damaging threads.
Tip: Hold the boot by the base, not by the wire, to prevent internal damage. - 4
Inspect and prepare the new plug
Compare the new plug with the removed one for size and type. Check the gap with a gauge if required, and apply a light coat of dielectric grease to the boot contact area. If the manual calls for anti-seize on threads, apply a thin coat to the plug threads.
Tip: Do not bend the ground electrode; inspect for manufacturing defects before threading. - 5

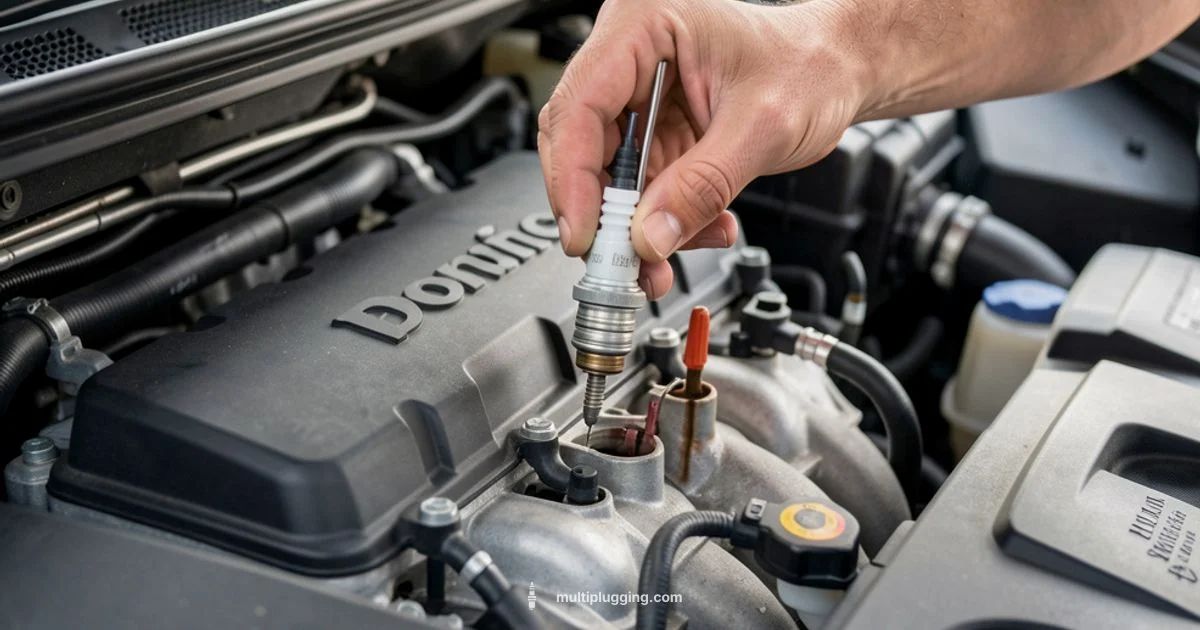

Install the new plug
Thread the plug by hand to avoid cross-threading, then snug with the ratchet. Use a torque wrench to tighten to the manufacturer’s specification. Over-tightening can damage the cylinder head and seeds leaks.
Tip: If you don’t know the exact torque, start with a light preload, then verify with a torque spec from the manual. - 6
Reconnect the boot and reassemble
Re-seat the boot firmly on the new plug, ensuring the boot clicks or seats properly. Reinstall any covers or shielding, then reconnect the battery negative. Start the engine and listen for a smooth idle and immediate response.
Tip: If the engine misses or runs roughly, re-check boot seating and plug seating.
FAQ
What is the e3 22 spark plug and what does the 22 indicate?
The e3 22 spark plug is part of the E3 family and designed for compatibility with a subset of engines. The '22' often refers to a specific model variant or heat range. Always verify with the engine manufacturer or service manual to ensure correct fitment.
The e3 22 spark plug is a model variant in the E3 line; verify fitment with your engine's manual.
Is the E3 22 compatible with my engine?
Compatibility depends on your engine's design, heat range requirements, and thread size. Check the service manual or consult the plug manufacturer to confirm fitment before replacement.
Check your engine manual to confirm if the E3 22 is the right plug.
Should I gap the E3 22 plug, and how?
Gap adjustment should follow the engine's specified gap range. Use a gap gauge and adjust carefully if your plug is designed to be gapped at install. If the plug is delivered pre-gapped, do not alter unless the manual instructs otherwise.
Follow the engine’s gap specification; use a gap gauge if adjustment is needed.
Do I need anti-seize for spark plug threads?
Anti-seize helps prevent galling on aluminum heads but isn’t always recommended. Follow the vehicle’s service manual; some modern engines rely on special coatings in the head.
Refer to your manual about anti-seize; some engines don’t require it.
How long does a spark plug replacement typically take?
A straightforward replacement usually takes about 20–40 minutes per engine type, assuming good access and no complications. If access is restricted, allow more time.
Most installs take under an hour; plan for extra time if access is tight.
What are common signs of a faulty spark plug after replacement?
If misfires persist, recheck boot seating and plug torque, inspect wires for damage, and watch for rough idle or poor acceleration, which can indicate continued ignition or fueling issues.
Watch for misfires or rough idle even after replacement; verify everything is seated properly.
Can I reuse old wires with a new E3 22 plug?
Wires are part of the ignition system’s reliability. If they show wear, cracking, or high resistance, replace them with new wires or boots to avoid misfires.
If wires show wear, replace them rather than reuse old parts.
Where can I find official torque specs for the E3 22 plug?
Torque specs vary by engine and head design. Always refer to the vehicle manufacturer’s service manual for the exact torque value and follow recommended tightening procedures.
Check the service manual for the correct torque value.
Watch Video
Main Points
- Verify plug compatibility with the engine manual
- Follow correct torque and gap procedures
- Inspect ignition components for wear during replacement
- Test engine performance after installation
