Error Code l77jc4: Spark Plug Diagnostics and Quick Fixes
An urgent, practical guide to understanding and fixing error code l77jc4 affecting spark plugs and ignition. Learn the meaning, diagnostic flow, step-by-step repair, and prevention to get back on the road fast.
l77jc4 is a diagnostic engine code signaling an ignition misfire or ignition system fault. It commonly points to worn or fouled spark plugs, weak ignition coils, or faulty wiring. The fastest path to a fix is to inspect and replace the spark plugs, confirm coil health, and clear the code; if the problem persists, pursue deeper ECU or sensor testing. This urgent guide outlines the concrete steps you should take now.
What l77jc4 Really Means for Your Engine
The code l77jc4 is a diagnostic hint from the engine control unit (ECU) that something in the ignition pathway is not firing correctly. In practical terms, it often means the spark needs a better, more consistent jump, or that the timing isn’t aligning with the rest of the combustion cycle. For the everyday car owner or DIY enthusiast, this translates into checking the spark plugs first, then inspecting ignition coils and wiring. Early attention to l77jc4 can prevent a catalyst ailing trouble and costly downstream damage. According to MultiPlugging, most l77jc4 events stem from aging spark components or buildup on the plug that interrupts the spark.
Common Symptoms That Tie to l77jc4
When l77jc4 appears, you may notice rough idling, reduced power, hesitation during acceleration, misfire sounds, or a check engine light that flickers or stays illuminated. A rough-running engine can also show elevated fuel consumption, higher exhaust emissions, and, in some cases, a noticeable vibration at idle. The time to diagnose is immediately after you notice a misfire pattern; waiting can lead to catalytic converter damage or increased emissions. The MultiPlugging team emphasizes testing the ignition path step by step to isolate the culprit efficiently.
Why Spark Plugs Remain the Most Likely Culprit
Spark plugs wear out with heat and use; gaps widen or carbon fouling forms, leading to weak or inconsistent sparks. If a plug fails to fire, the ECU may log l77jc4 and shift the engine into a safe mode that reduces performance to protect the exhaust system. Ignition coils can fail intermittently, causing the same code to appear even when the plug looks fine. In any l77jc4 scenario, start with the simplest, most controllable component—the spark plug—and progress to the more complex electrical systems if needed.
Diagnostic Flow for l77jc4 (Structured Path)
Start with a quick visual inspection of the observed symptoms and the plug condition. If the plugs are fouled, varnished, or the gaps are inconsistent, they are a prime suspect. Swap in a known-good plug in one cylinder to observe if the misfire follows that cylinder. If the issue persists, perform a compression test and inspect the ignition coil pack and related wiring harness. Using a scan tool to monitor live data (ignition coil current, misfire counters, and sensor readings) can help confirm root causes. In many cases, a systematic replacement and retest will resolve l77jc4.
Step-by-Step Fix Overview (Most Common Cause First)
When the spark plugs are identified as the culprit, replacing them with clean, properly gapped plugs is the fastest fix. After replacement, inspect the coil boots for cracks or carbon tracking, and test each coil’s resistance if you have a diagnostic tool. Clear the fault code from the ECU and start the engine to confirm proper ignition and smooth operation. A post-repair test drive that includes pulling codes again ensures the fault is fully resolved. If the code returns, there may be a secondary issue in the coil pack, wiring, or sensors.
Other Possible Causes and How to Address Them
If new plugs don’t resolve l77jc4, consider the ignition coil, coil wiring harness, or a failed cam/crank position sensor. Vacuum leaks, intake air leaks, or faulty fuel delivery can sometimes present similarly, depending on the engine management strategy. In these cases, follow a broader diagnostic flow: measure compression, inspect vacuum lines, and verify fuel pressure appropriate for your engine. Replacing ignition components in pairs is a common practice when diagnosing misfire codes, as it minimizes the chance of a lingering weak spark.
Safety, Costs, and When to Call a Pro
Safety first: disconnect the battery before any spark-plug work, wear eye protection, and work in a well-ventilated area. Costs vary by vehicle and region, and exact figures can be misleading without inspection; expect to budget for parts and labor in general ranges, recognizing that prices differ widely. If you’re uncomfortable with high-pressure fuel rails, coil testing, or wiring harness diagnosis, or if the code persists after plugs replacement, seek professional electrical diagnostics to prevent further damage. A pro can verify ignition electronics, timing, and sensor health more reliably.
Prevention: Keeping l77jc4 from Returning
Regular spark plug maintenance, using the correct gap and heat range for your engine, and staying on top of ignition coil inspection can prevent l77jc4 from reappearing. Using quality plugs and properly torquing them to factory specs reduces the risk of damage and misfiring. Periodic diagnostic scans after long trips or high-load driving can catch issues early, keeping your engine in top shape and your drive smooth.

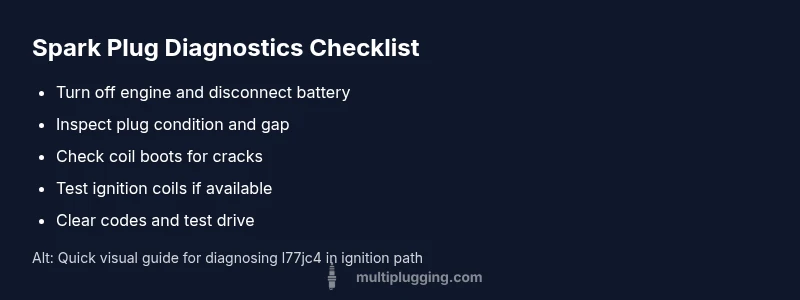

Steps
Estimated time: 45-90 minutes
- 1
Safety prep and battery isolation
Park on a level surface, engage parking brake, disconnect the negative battery terminal, and wear eye protection. This step prevents accidental shocks while you work near high-voltage ignition components.
Tip: Label and reconnect connectors in the same order to avoid misrouting wires. - 2
Gather tools and parts
Collect a spark plug socket, torque wrench, feeler gauge or gap tool, anti-seize compound, and a replacement set of plugs with the correct heat range for your engine. Confirm you have the correct gap for your specific model.
Tip: Check the owner’s manual or a parts diagram to confirm plug type and gap. - 3
Remove and inspect spark plugs
Loosen and remove the first spark plug, inspecting for fouling, oil on the thread, or glazing. If you see heavy fouling or oil, address possible piston ring or valve guide issues in addition to plugs.
Tip: Take a photo of the plug before removal to compare wear patterns later. - 4
Compare gaps and condition
Measure the gap with a feeler gauge and compare to your engine’s specification. Replace plugs if gaps are out of spec or you see wear indicators. Use new plugs with the manufacturer-recommended heat range.
Tip: Do not reuse old plugs if any sign of wear is present. - 5
Install new plugs
Thread plugs by hand to avoid cross-threading, then tighten to the manufacturer’s torque specification. Apply a small amount of anti-seize if recommended by the plug manufacturer.
Tip: Use a torque wrench to avoid over-tightening, which can damage cylinder heads. - 6
Check ignition components
Inspect coil boots and connectors for cracks or carbon tracking. Wiggle-test connections and ensure a clean, dry connection before reassembly.
Tip: If any boot shows wear, replace it to prevent misfires. - 7
Clear codes and test drive
Reconnect the battery, clear the fault codes with a scan tool, and perform a test drive under varying conditions to confirm the issue is resolved. Re-scan to verify l77jc4 does not reappear.
Tip: Note any new symptoms during the drive; if they reappear, recheck ignition, sensors, and fuel delivery.
Diagnosis: Error code l77jc4 displayed, engine misfiring or running rough
Possible Causes
- highWorn or fouled spark plugs
- mediumWeak or failing ignition coils
- lowDamaged spark plug wires or coil boots
Fixes
- easyInspect and replace worn/fouled spark plugs
- mediumTest ignition coils and replace faulty ones
- mediumInspect coil boots and wiring; fix or replace as needed
FAQ
What does code l77jc4 indicate in simple terms?
L77jc4 indicates a misfire or ignition fault detected by the ECU. The most common fix starts with inspecting and replacing spark plugs, then testing ignition coils and wiring if needed.
L77JC4 points to a misfire in the ignition path. Start with the plugs, then check the coils and wiring.
Can l77jc4 be caused by something besides the spark plugs?
Yes. While plugs are common, weak ignition coils, damaged spark plug boots, or wiring faults can also trigger l77jc4. In some engines, sensor or vacuum issues may mimic misfire codes.
Other causes include coils, boots, wiring, and sometimes sensor or vacuum issues.
Should I replace all spark plugs if one is bad?
Often yes. Replacing plugs in pairs or all at once can prevent mismatched performance and ensure balanced ignition timing across cylinders.
If one plug is bad, replacing all is common practice to prevent future misfires.
How long does a typical l77jc4 repair take?
A straightforward spark plug replacement on a typical inline engine usually takes under an hour for a DIY job, more for complex engines or additional checks.
DIY spark plug replacement usually takes under an hour; more if you have a complicated engine.
Can I reset l77jc4 myself after repairs?
Yes, after repairs, use a scan tool to clear the code and perform a test drive. If the code returns, re-evaluate ignition components and fuel delivery.
You can reset the code with a scan tool and test drive; if it comes back, you’ll need deeper diagnostics.
When should I seek professional help for l77jc4?
If you’re unsure about locating ignition faults, dealing with high-voltage components, or the code persists after plug replacement, seek professional diagnostics to avoid engine damage.
Call a pro if you’re unsure or the problem persists after basic fixes.
Watch Video
Main Points
- Identify l77jc4 as an ignition misfire indicator.
- Start with spark plugs; they’re the most likely culprit.
- Follow a systematic diagnostic flow before replacing multiple parts.
- Test and recheck after replacements to confirm resolution.
- Know when to seek professional diagnostic help.
